Cigarette Lighter: Service and Repair

CIGARETTE LIGHTER

Removal and Installation

REMOVAL
1. Remove the A/T finisher (A/T models) or M/T finisher (M/T models).
2. Remove console box finisher.

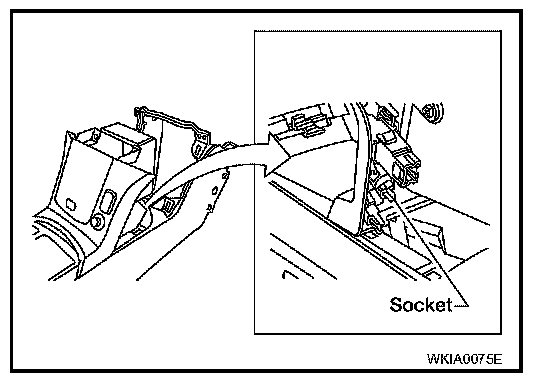

3. Remove socket.
4. Press out ring from the back of console box finisher.

INSTALLATION
Installation is in the reverse order of removal.
