Windshield Washer Motor: Service and Repair

Removal and Installation of Washer Motor

REMOVAL
1. Remove fender protector.
2. Remove front washer motor connector and hose.

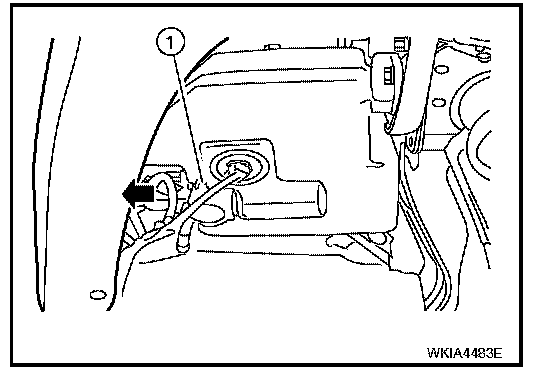

3. Remove front washer motor (1) in the direction of the arrow as shown.

INSTALLATION

CAUTION: When installing front washer motor, there should be no packing twists, etc.

Installation is in the reverse order of removal.
