GPS Antenna

GPS ANTENNA

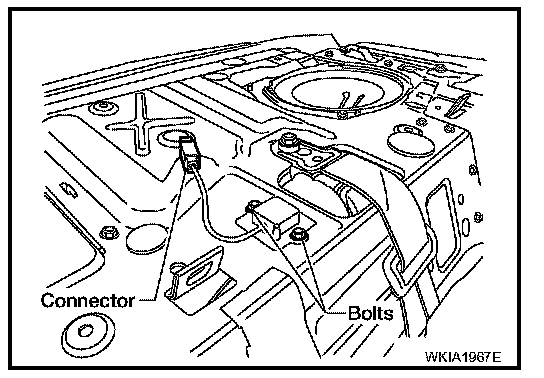

Removal
1. Remove rear parcel shelf finisher.




2. Remove bolts.
3. Disconnect GPS antenna connector and remove GPS antenna.

Installation
Installation is in the reverse order of removal.
