NAVI Control Unit

NAVI CONTROL UNIT

Removal

CAUTION:
- Do not strike the NAVI control unit while loading the trunk and do not place heavy objects on it. Doing so could cause improper operation or damage the system.
- To avoid damage, eject map DVD-ROM before removing the NAVI control unit.

1. Disconnect the battery negative terminal.
2. Remove trunk floor carpet and trunk side finisher LH.

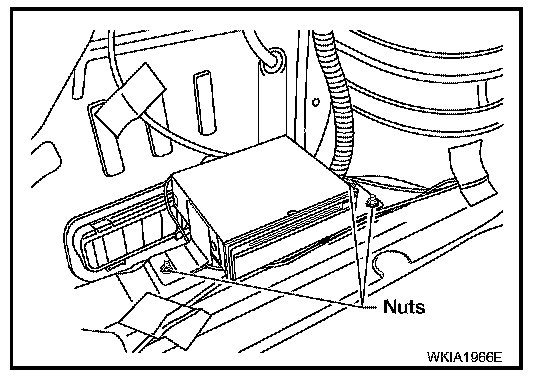

3. Remove retaining nuts.
4. Disconnect NAVI control unit connectors.
5. Remove screws and brackets from NAVI control unit.

Installation
Installation is in the reverse order of removal.
