Removal and Installation For Audio Unit
Removal and InstallationAUDIO UNIT
Removal
1. Remove cluster lid D.

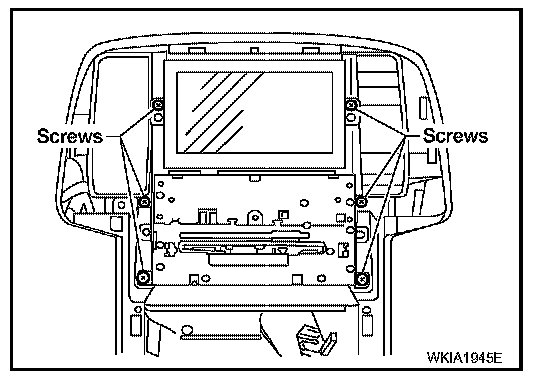

2. Remove screws using power tool and slide audio/display assembly (with NAVI) or audio unit (without NAVI) forward.
3. Disconnect electrical connectors and antenna cable.
4. Remove audio/display assembly.
5. Remove audio unit screws and remove audio unit from brackets.
Installation
Installation is in the reverse order of removal.
