Door Mirror

DOOR MIRROR

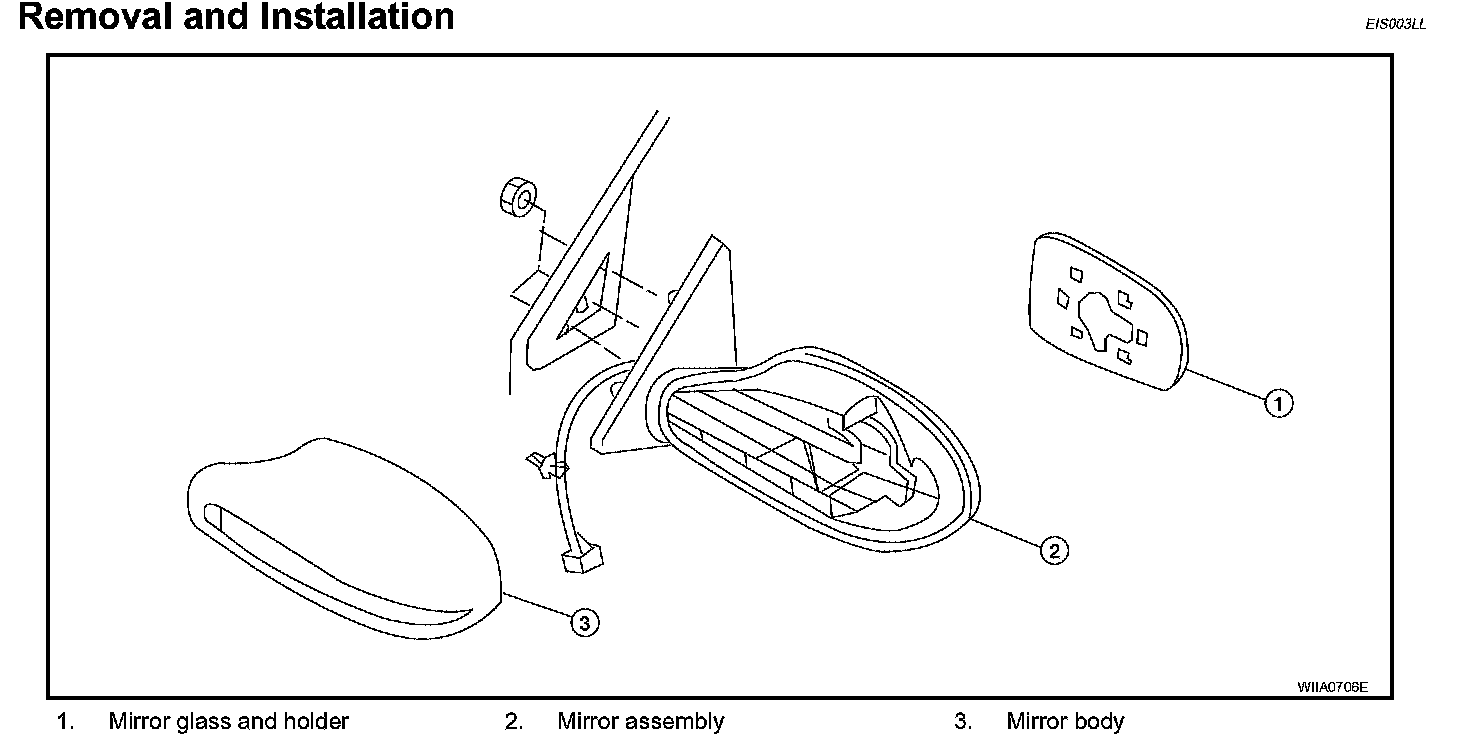

Removal and Installation

REMOVAL

NOTE: Be careful not to damage the mirror bodies.

1. Remove the front door sash cover. Refer to "FRONT DOOR FINISHER".
2. Remove the door mirror harness connector.
3. Remove the door mirror nuts and the door mirror assembly.

INSTALLATION
Installation is in the reverse order of removal.
