Sunroof / Moonroof: Adjustments

SUNROOF




ADJUSTMENT

CAUTION:
- Always work with a helper.
- Handle glass lid assembly with care to prevent damage.

NOTE:
- For easier and more accurate installation, always mark each point before removal.
- After any adjustment, check sunroof operation and glass lid assembly alignment.

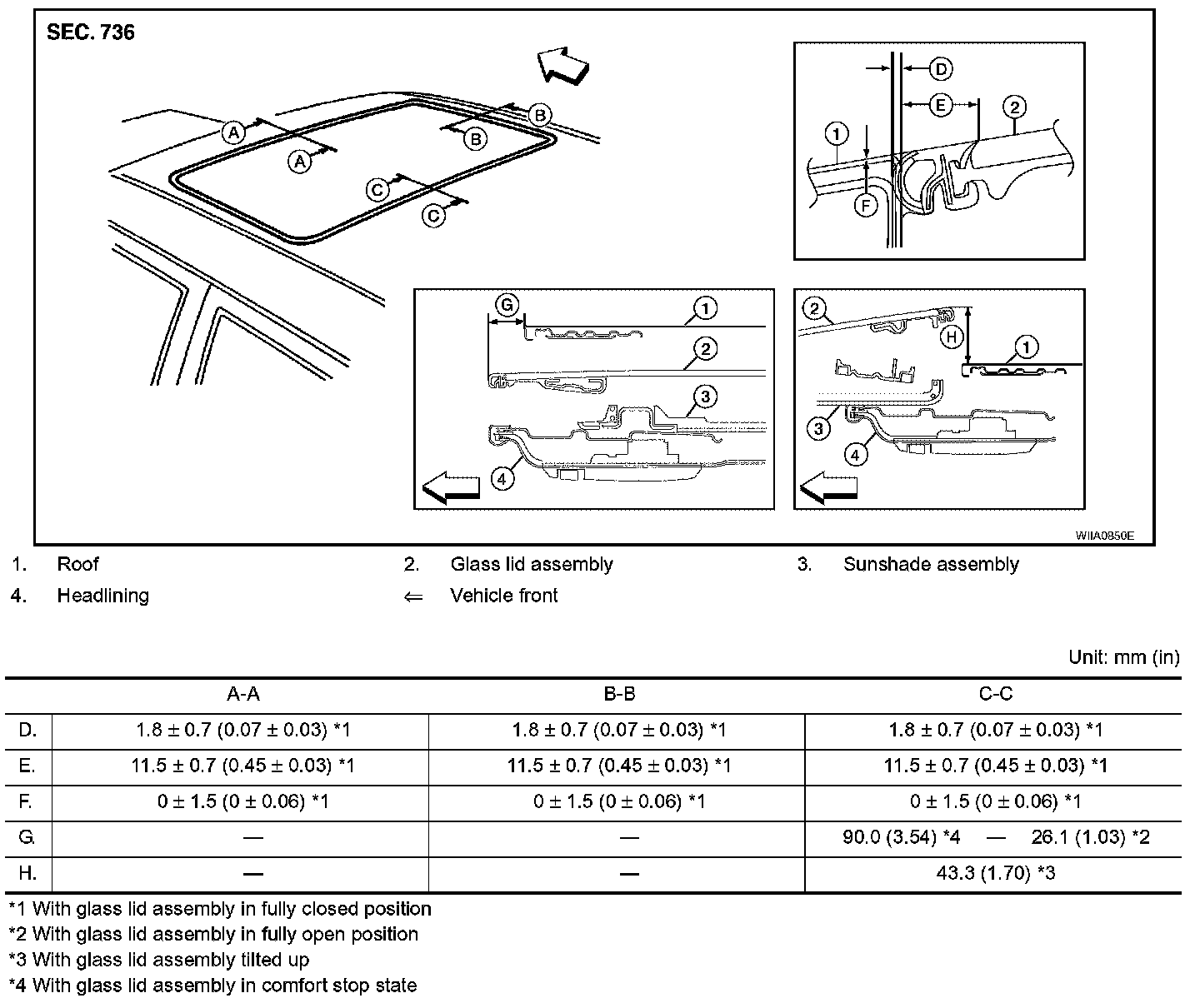

Gap adjustment (A-A, C-C)
1. Open sunshade assembly.
2. Tilt glass lid assembly up, then remove side trim.




3. Loosen glass lid assembly Torx(r) bolts (1) (3 each on left and right sides), then tilt glass lid assembly down.
4. Manually adjust glass lid assembly from outside of vehicle so gaps A-A and C-C are within specifications.

NOTE: Temporarily snug glass lid assembly Torx bolts to prevent movement between each adjustment.

5. Tilt glass lid assembly up and down several times using sunroof switch to check that it operates smoothly.
6. Tilt glass lid assembly up and tighten Torx bolts to specification.

NOTE: First tighten left front bolt, then right rear bolt on glass lid assembly to prevent uneven torque while tightening remaining bolts.

Glass lid assembly Torx bolts : 4.0 N.m (0.41 kg-m, 35 in-lb)

Gap Adjustment (B-B)
1. Remove headlining.
2. Loosen sunroof unit assembly and sunroof bracket bolts.
3. Carefully slide sunroof unit assembly side to side or add shims until gap is within specifications.

NOTE: Temporarily snug sunroof unit assembly bolts to prevent movement between each adjustment.

4. Tilt glass lid assembly up and down several times using sunroof switch to check that it operates smoothly.
5. Tighten sunroof unit assembly and sunroof bracket bolts.

NOTE: First tighten left front sunroof unit assembly bolt, then right rear to prevent uneven torque while tightening remaining bolts.

Sunroof unit assembly bolts : 5.7 N.m (0.59 kg-m, 51 in-lb)
Sunroof bracket bolts : 5.7 N.m (0.59 kg-m, 51 in-lb)

Height Adjustment
1. Tilt glass lid assembly up and down several times using sunroof switch to check that it operates smoothly.
2. Check height difference between roof surface and glass lid assembly surface, then compare to specifications.

3. Adjust height difference by using the following procedure.
- Loosen glass lid assembly Torx bolts.
- Manually raise/lower glass lid assembly until height difference is within specification.

NOTE: If necessary, shims may be added between sunroof unit assembly and roof to increase adjustment range. Refer to "Gap Adjustment (B-B)". Temporarily snug sunroof unit assembly bolts to prevent movement between each adjustment.

- Tilt glass lid assembly up and down several times using sunroof switch to check that it operates smoothly.
- Tighten glass lid assembly Torx bolts.

NOTE: First tighten left front bolt, then right rear bolt on glass lid assembly to prevent uneven torque while tightening remaining bolts.

Glass lid assembly Torx bolts : 4.0 N.m (0.41 kg-m, 35 in-lb)

- After any adjustment, check sunroof operation and glass lid assembly alignment.
