Timing Components: Specifications

Timing Cover
Loosely install the front timing chain case bolts.





Bolt position Bolt diameter
1, 2 8 mm (0.31 inch)
3 - 22 6 mm (0.24 inch)

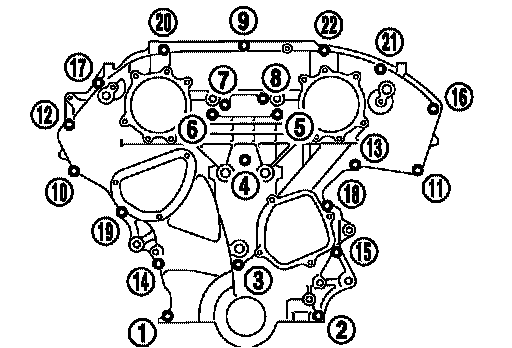

Tighten the front timing chain case bolts in the order
Retighten the front timing chain case bolts in shown.
Bolt position Tightening specification
1, 2 28.5 Nm (2.9 kg-m, 21 ft. lbs.)
3 - 22 12.8 Nm (1.3 kg-m, 9 ft. lbs.)








Timing Chain Tensioner

Crankshaft Pulley

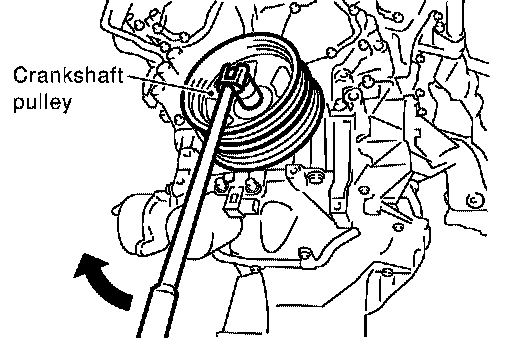

Install crankshaft pulley and tighten the bolt in two steps.
Lubricate thread and seat surface of the bolt with new engine oil.
For the second step of angle tightening. Use Tool.
Step 1 44 Nm (4.5 kg-m, 32 ft. lbs.)
Step 2 84° - 90° clockwise
Tool number KV10112100 (BT-8653-A)
