Manual Air Conditioning

Front Air Control Terminals and Reference Value

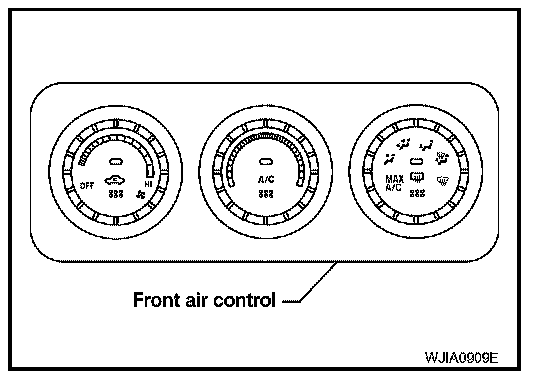

INSPECTION OF FRONT AIR CONTROL




- Measure voltage between each terminal and body ground by following "FRONT AIR CONTROL INSPECTION TABLE".

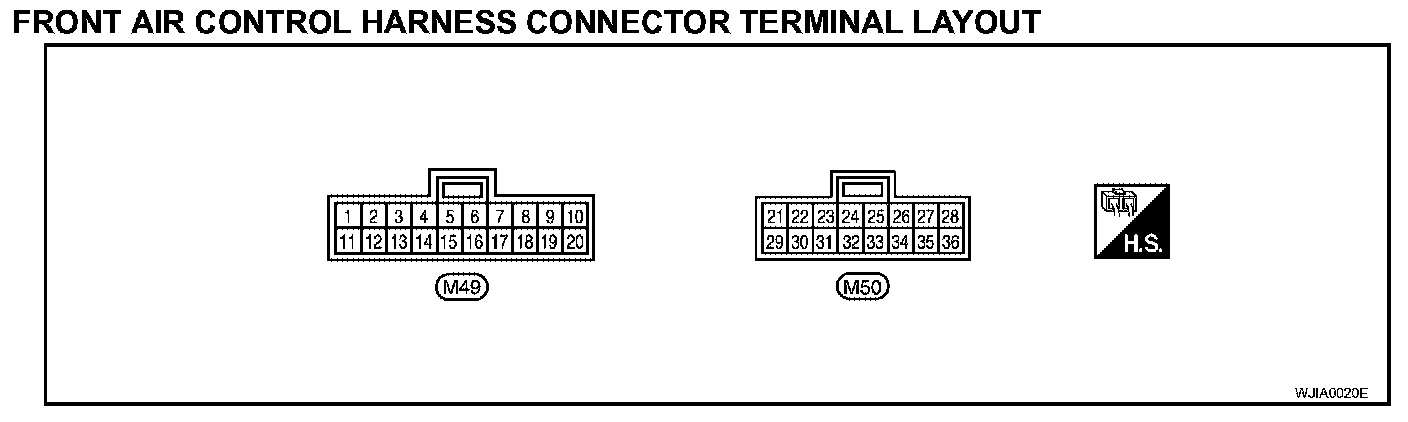

FRONT AIR CONTROL HARNESS CONNECTOR TERMINAL LAYOUT

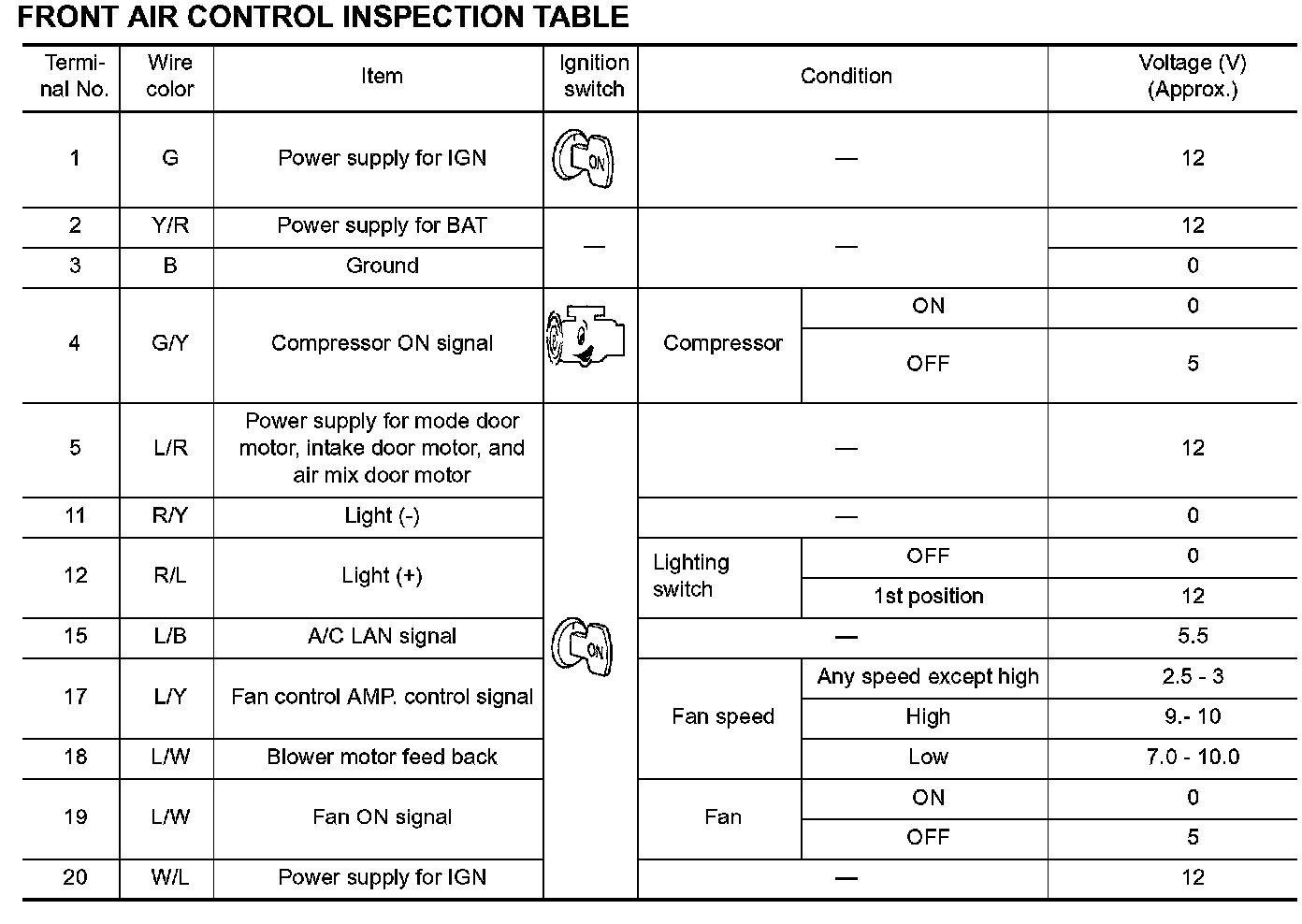

Front Air Control Inspection Table Part 1:

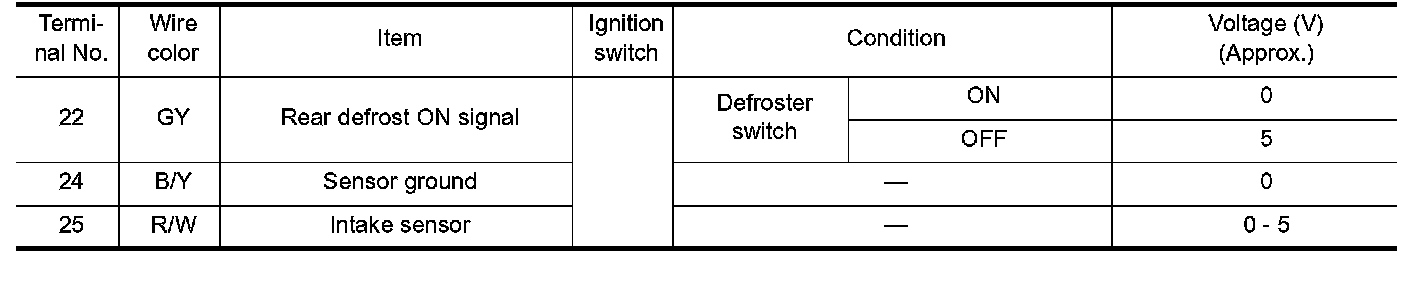

Front Air Control Inspection Table Part 2:

FRONT AIR CONTROL INSPECTION TABLE
