Center Console

Center Console

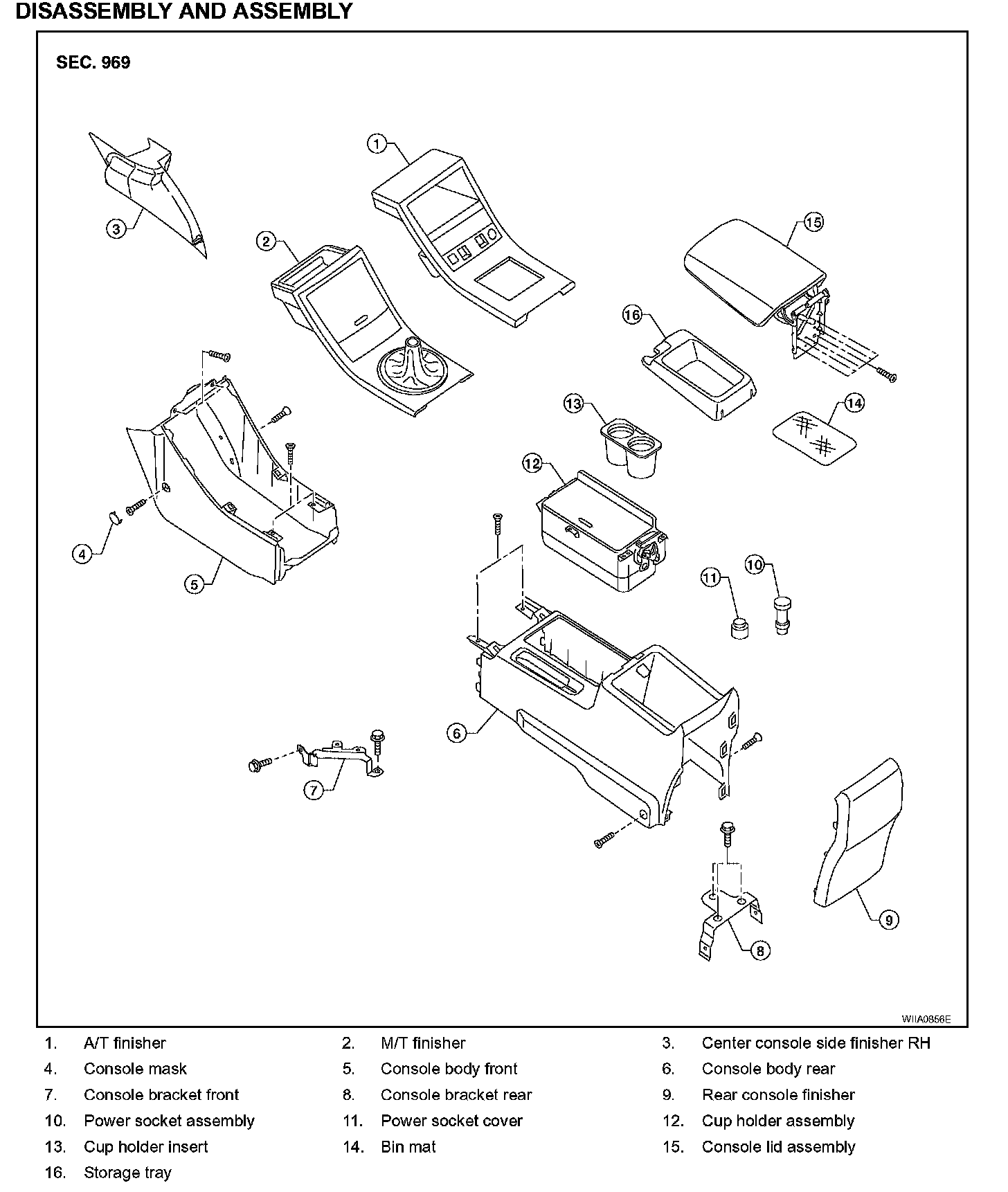

DISASSEMBLY AND ASSEMBLY

Disassembly
1. Remove center console assembly. Refer to "WORK STEPS".
2. Remove rear console finisher.
3. Remove cup holder insert.
4. Remove cup holder assembly.
5. Remove storage tray and bin mat.
6. Remove console lid assembly.
7. Remove console bracket rear.
8. Remove console bracket front.
9. Remove cigarette lighter assembly.
10. Remove power socket assembly.

Assembly
Assembly is in the reverse order of disassembly.
