Horn: Service and Repair

Removal and Installation

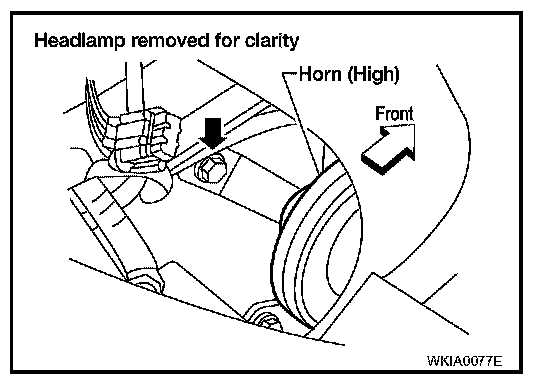

HORN HIGH

Removal




1. Remove right headlamp.
2. Disconnect horn connector.
3. Remove horn bolt, then remove the horn.

Installation
Installation is in the reverse order of removal.

HORN LOW

Removal




1. Remove left headlamp.
2. Disconnect horn connector.
3. Remove horn bolt, then remove the horn.

Installation
Installation is in the reverse order of removal.
