Power Supply Routing Circuit Schematic
Power Supply Routing Circuit Schematic

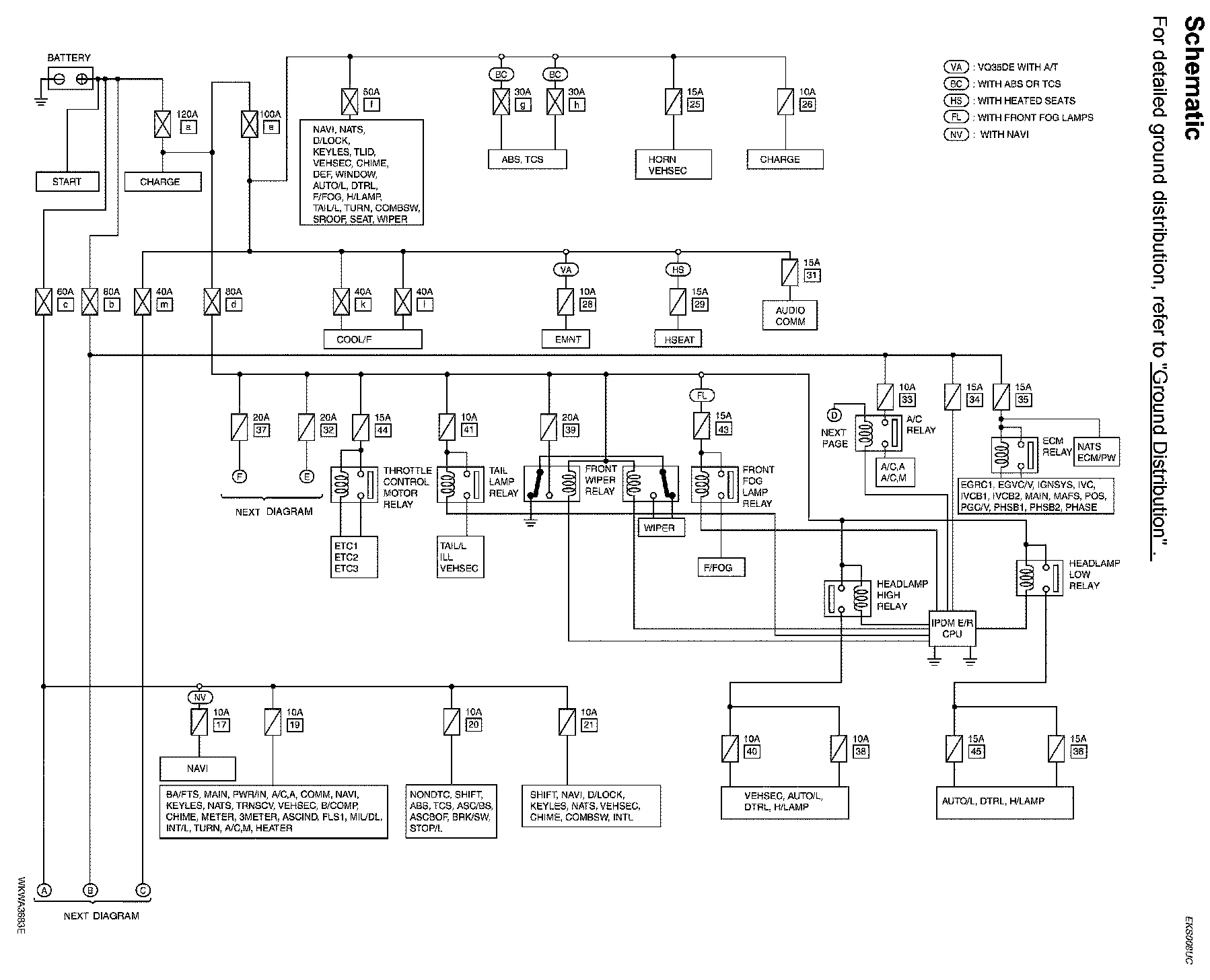

Power Supply Routing Schematic (Part 1):

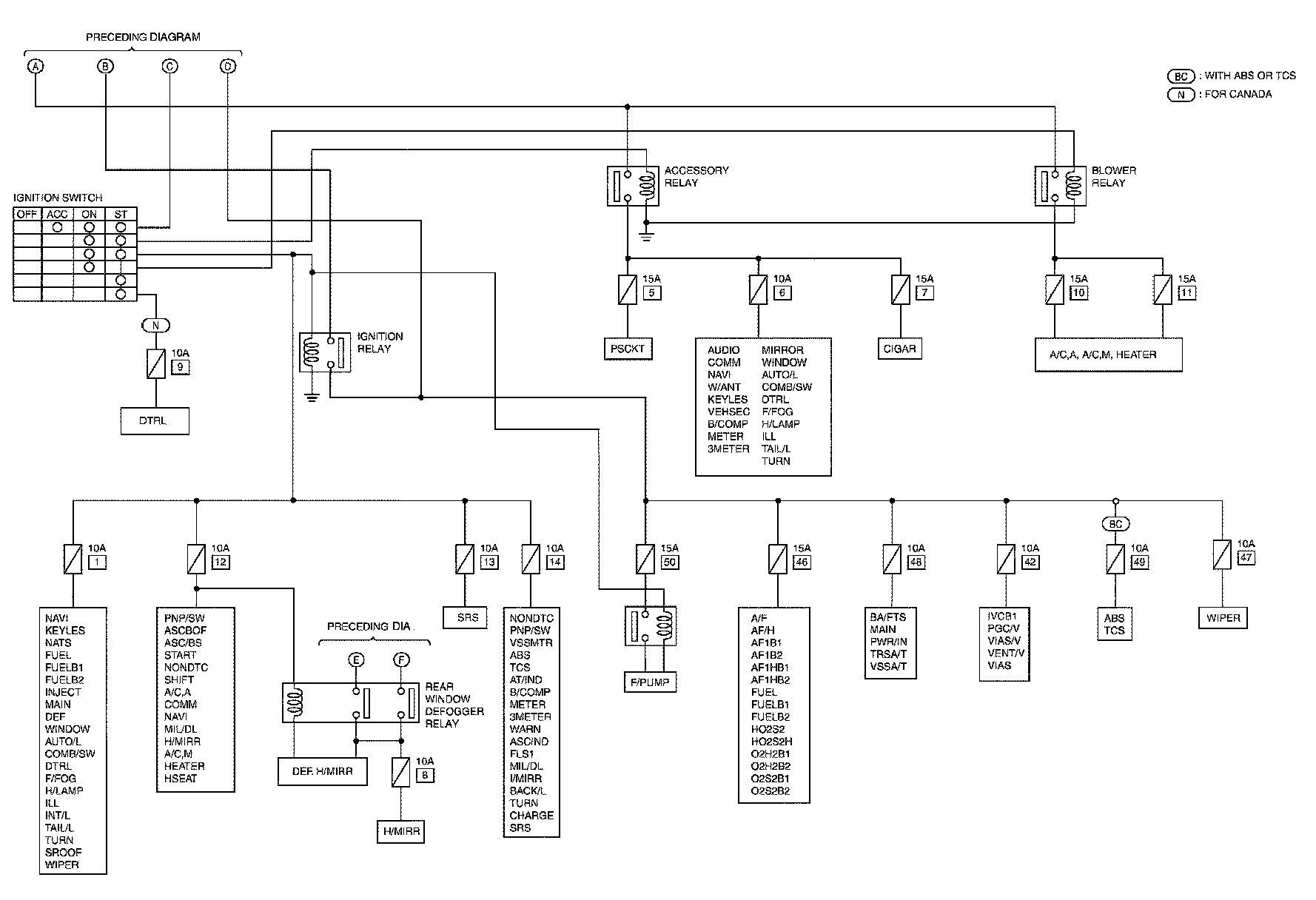

Power Supply Routing Schematic (Part 2):
