Pinout Values and Diagnostic Parameters

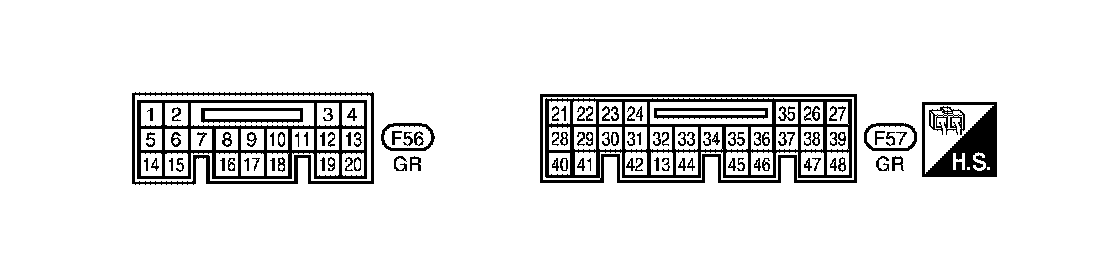

TCM TERMINAL CONNECTOR LAYOUT:

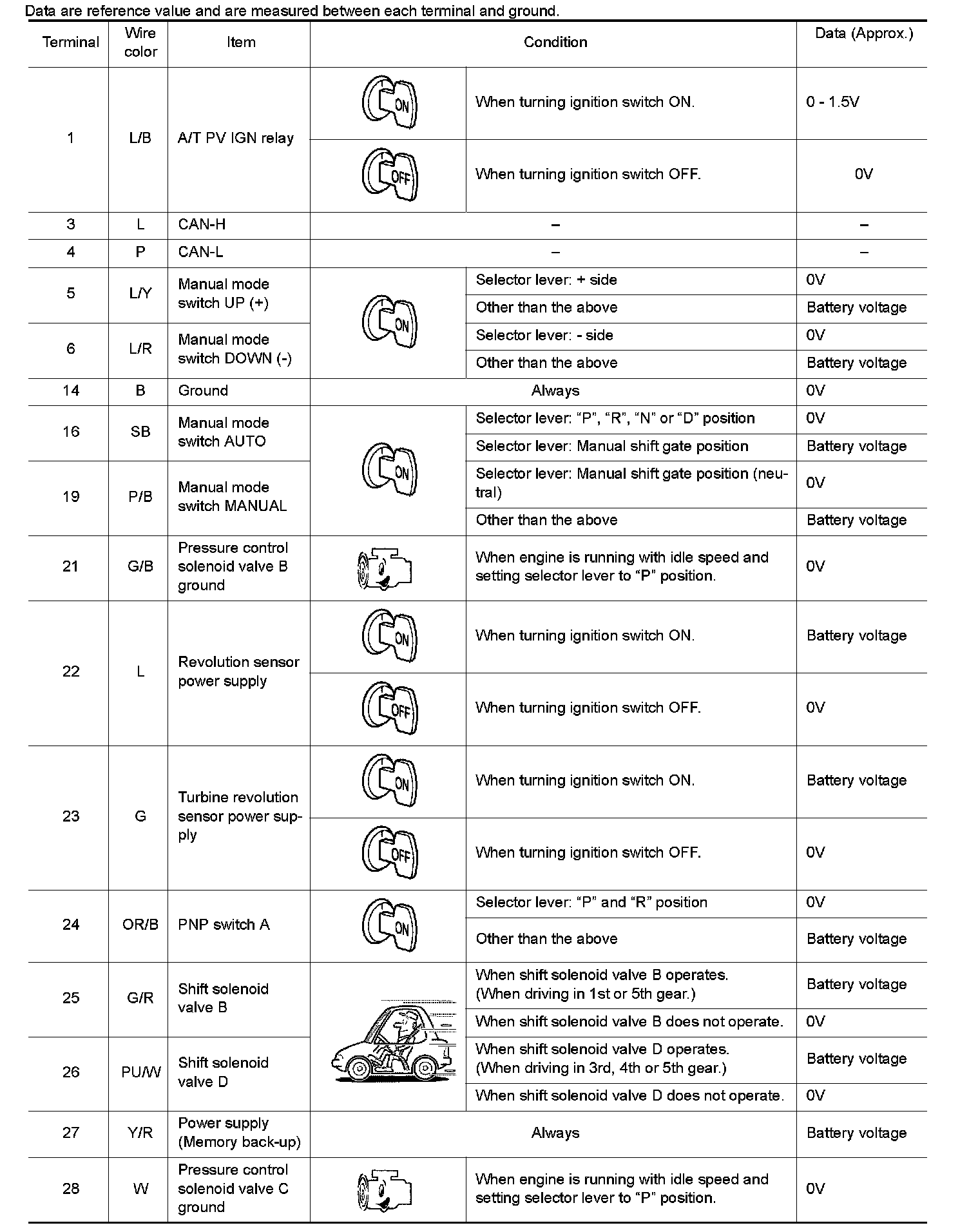

TCM INSPECTION TABLE:

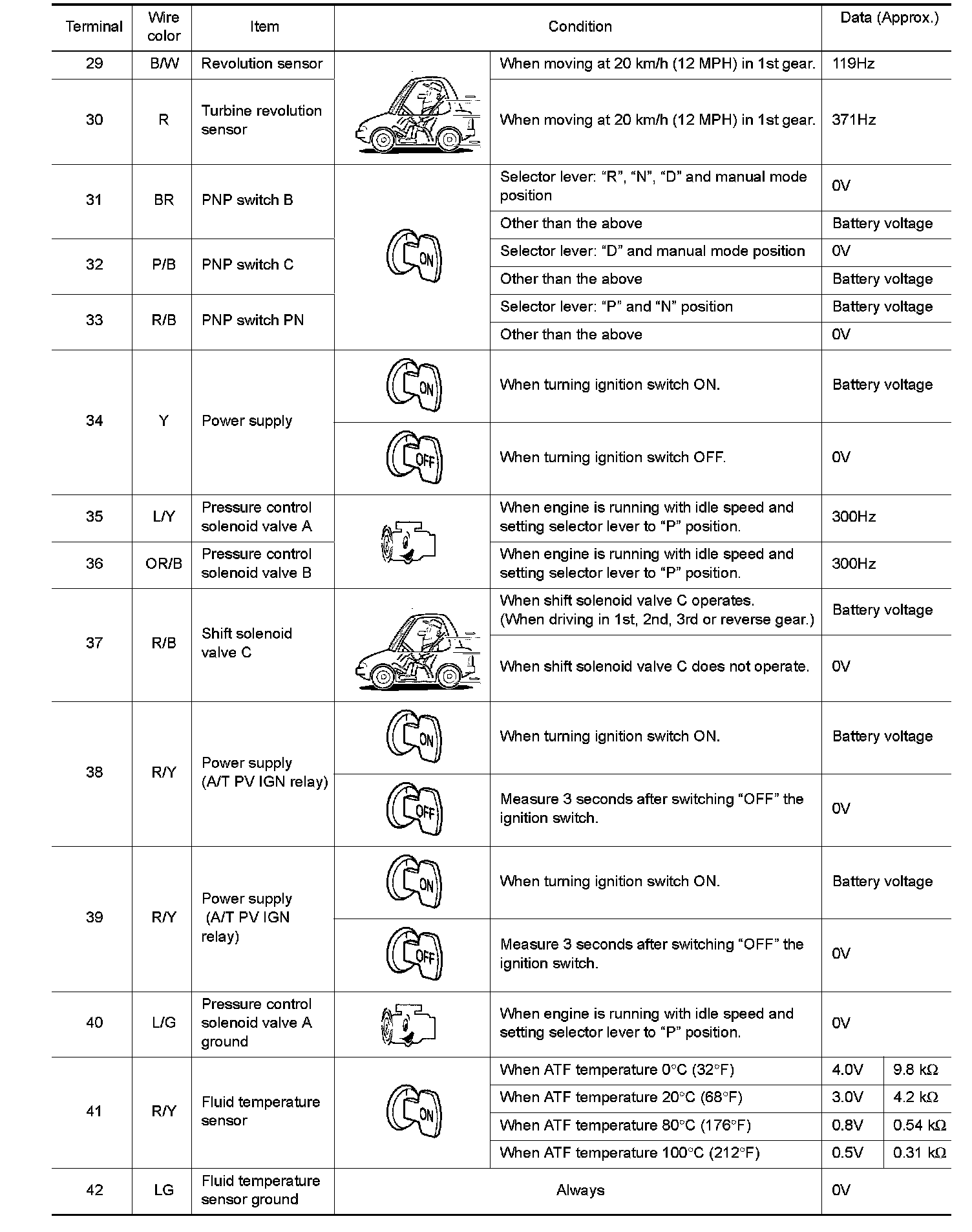

TCM INSPECTION TABLE:



TCM INSPECTION TABLE:
