Pressure Plate
Pressure Plate

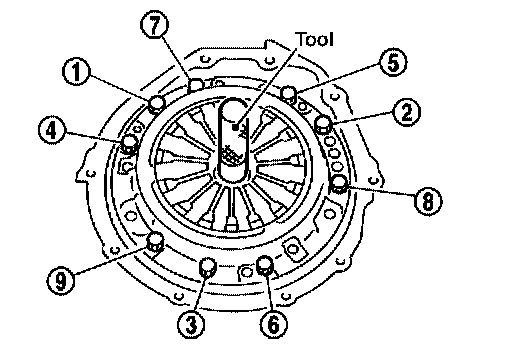

^ Tighten the clutch cover bolts in two steps using the numerical order as shown.
First step: 10 - 20 Nm (1.0 - 2.0 kg-m, 7 - 14 ft. lbs.)
Final step: 35 - 44 Nm (3.5 - 4.5 kg-m, 26 - 32 ft. lbs.)
^ Tighten the clutch cover bolts in two steps using the numerical order as shown.
First step: 10 - 20 Nm (1.0 - 2.0 kg-m, 7 - 14 ft. lbs.)
Final step: 35 - 44 Nm (3.5 - 4.5 kg-m, 26 - 32 ft. lbs.)
