Camshaft Bearing

Bearing Cap

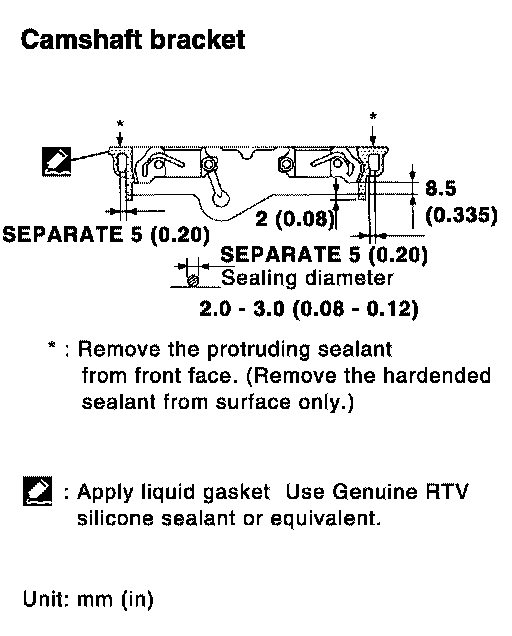

Before installing camshaft brackets, apply sealant to mating surface of No. 1 camshaft bracket.
Use Genuine Silicone RTV Sealant, or equivalent.





Before installation, wipe off any protruding sealant.

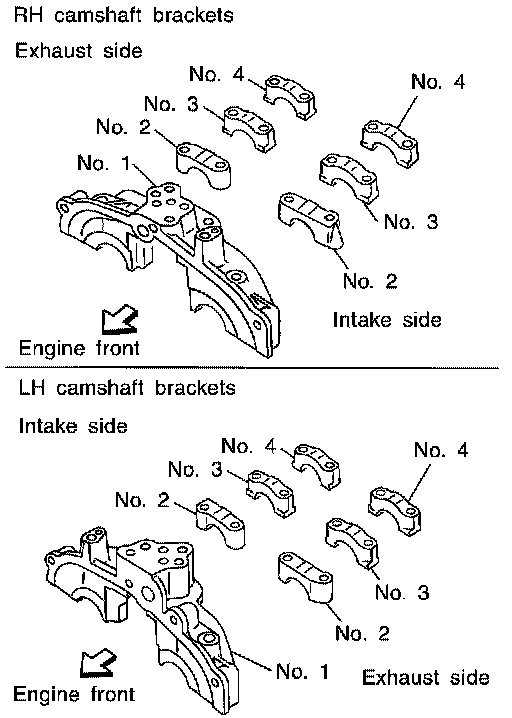

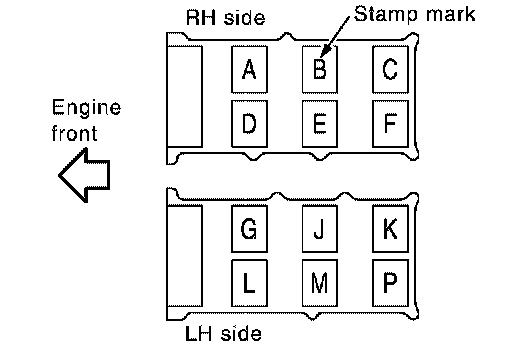

Install camshaft brackets in their original positions and direction. Align the stamp marks as shown.

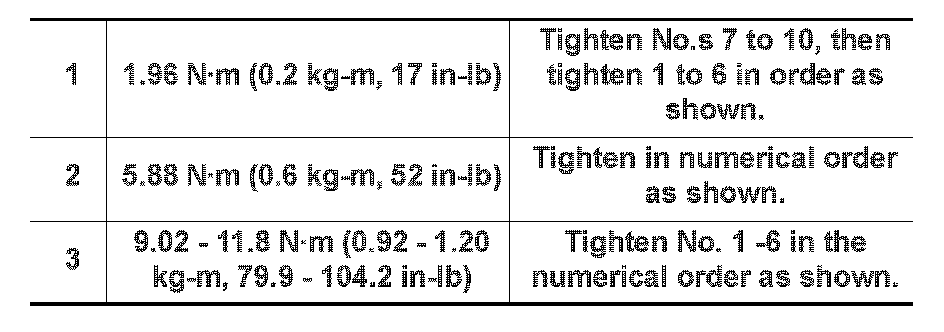

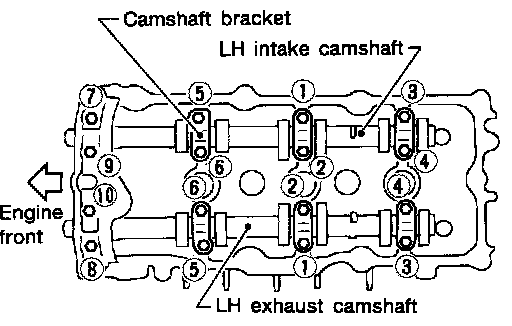

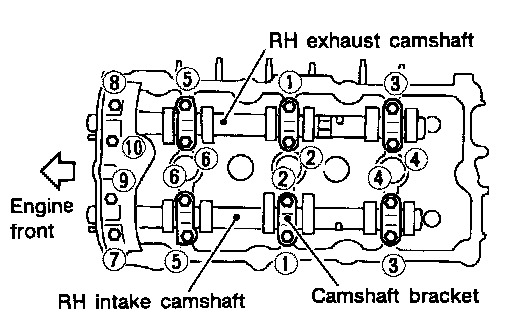

Tighten the camshaft brackets in the three steps, in numerical order as shown.
