Service Limits & General Specifications

DRIVE PLATE RUNOUT (A/T)





Runout (Total Indicator Reading):
Drive plate (A/T) torque converter surface: less than 0.35 mm (0.0138 inch)
Ring gear: less than 0.5 mm (0.0197 inch)

CAUTION:
^ The signal plate is built into the drive assembly. Be careful not to damage the signal plate, particularly the teeth.

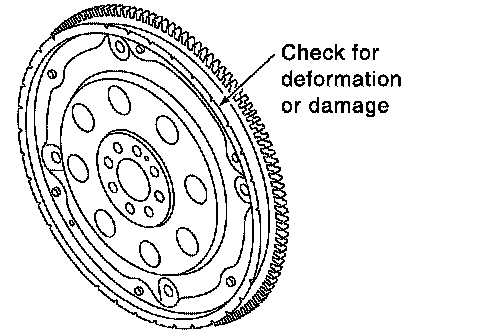

^ Check the drive plate and signal plate for deformation or cracks.





^ Keep any magnetized objects away from the signal plate, particularly the teeth.
