Automatic Transmission/Transaxle: Service Precautions

Precautions for A/T Assembly or TCM Replacement
^ When replacing A/T assembly or TCM, refer to the pattern table and initialize TCM if necessary.

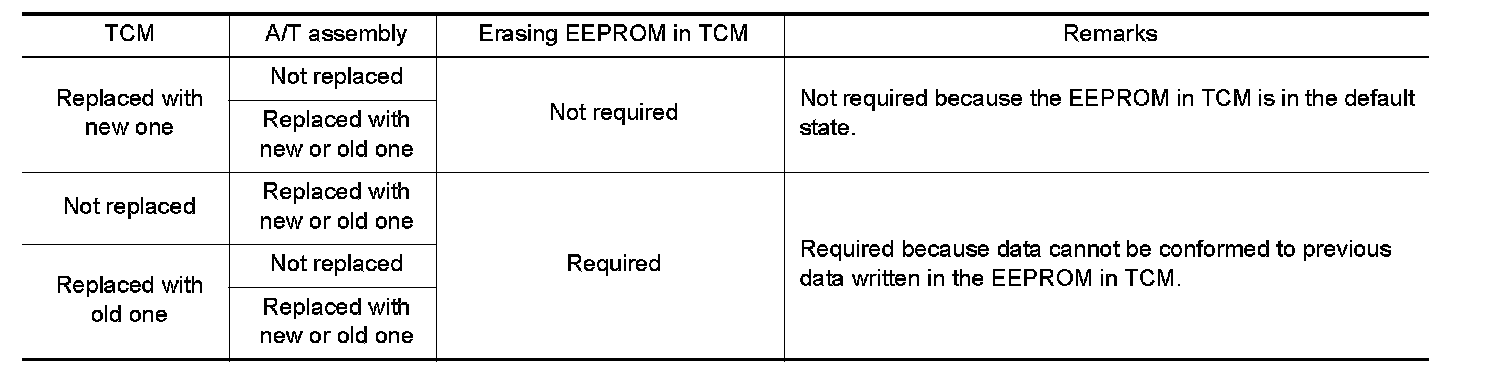

TCM INITIALIZATION PATTERNS





NOTE: Old one is the TCM or A/T assembly that has been used on other vehicles.

METHOD FOR TCM INITIALIZATION
1. Perform "CONSULT-II SETTING PROCEDURE". Refer to AT-462, "CONSULT-II SETTING PROCEDURE". CONSULT-II Setting Procedure
2. Set the vehicle following the items listed below.
^ Ignition switch "ON".
^ Selector lever "P" or "N" position.
^ Engine not running.
^ Vehicle speed is 0 km/h (0 MPH).
^ Ignition voltage is more than 10.5V.
^ Malfunction was not detected.
3. Touch "WORK SUPPORT".
4. Touch "INITIALIZATION".
5. Initialize TCM following the direction in display.
