RS6F51A Manual Transaxle

DESCRIPTION

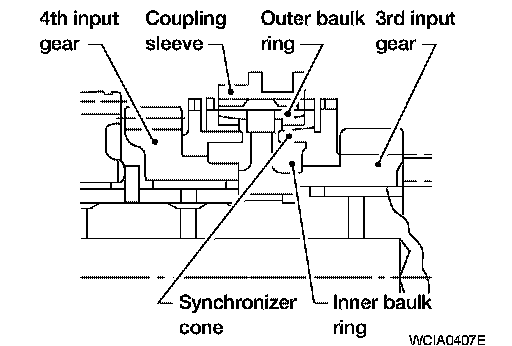

DOUBLE-CONE SYNCHRONIZER





The 3rd gear is equipped with a double-cone synchronizer to reduce the operating force of the shift lever as shown.

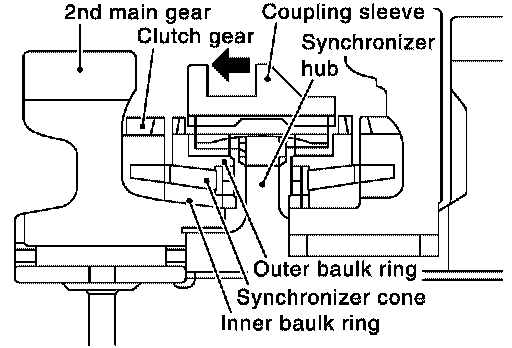

TRIPLE-CONE SYNCHRONIZER





The 1st and 2nd gears are equipped with a triple-cone synchronizer to reduce the operating force of the control lever as shown.

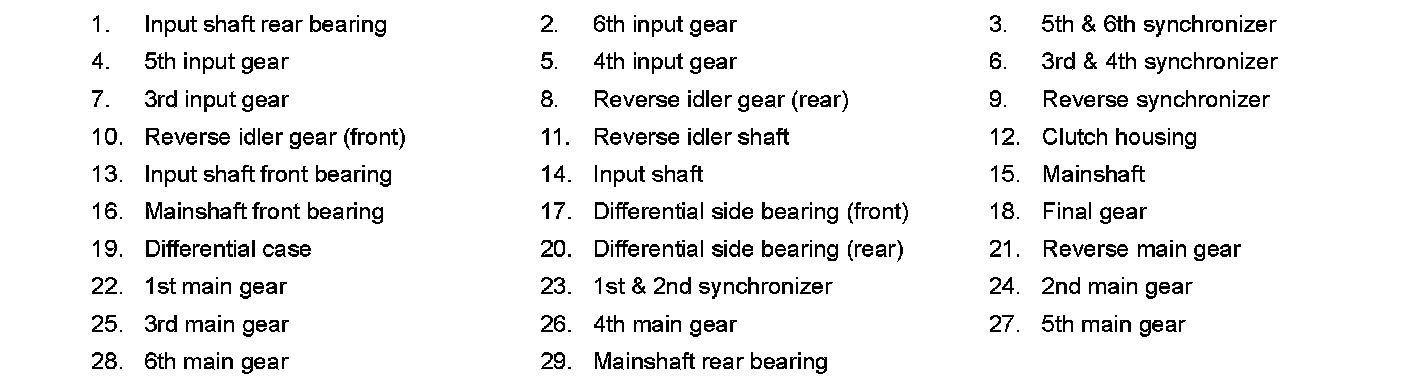

REVERSE GEAR





Description of reverse gear components is as shown.
