Maxima V6-3.5L (VQ35DE)
>>
Repair and Diagnosis
>>
A L L Diagnostic Trouble Codes ( DTC )
>>
Testing and Inspection
>>
B Code Charts
>>
B2128
B2128

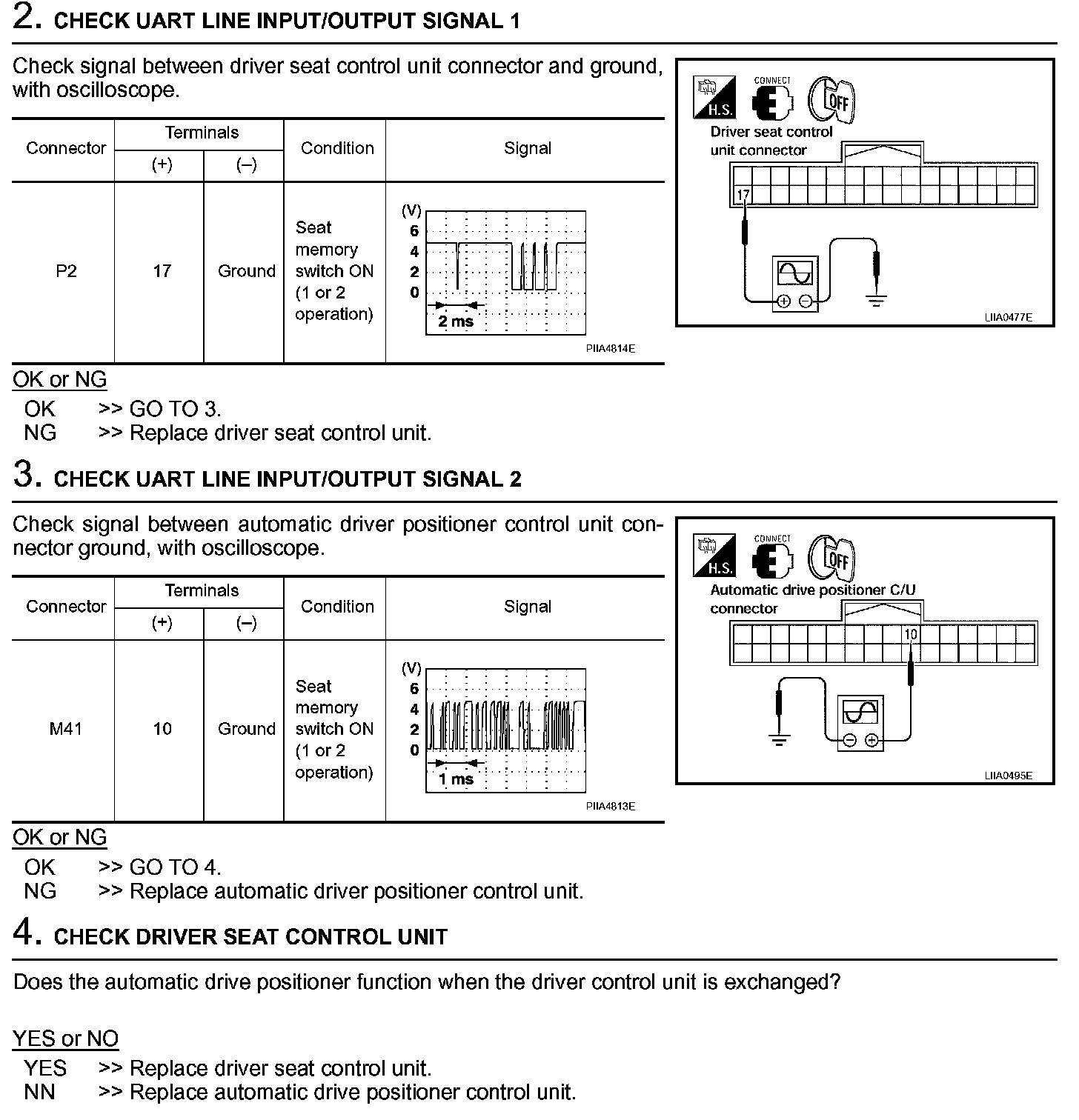

UART Comunication Line Circuit Inspection (Step 1 ):
UART Comunication Line Circuit Inspection (Steps 2 - 4 ):
