Removal and Installation of GPS Antenna

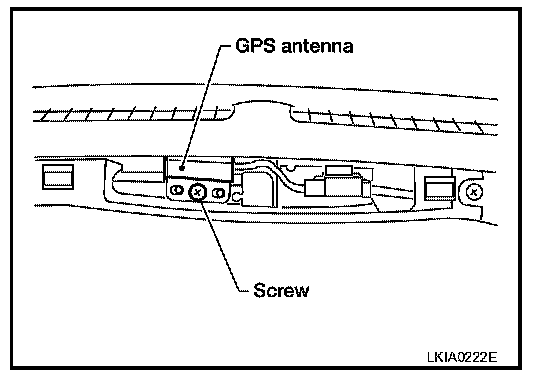

GPS ANTENNA




Removal
1. Remove security indicator lamp.
2. Disconnect GPS antenna connector.
3. Remove GPS antenna.

Installation
Installation is in the reverse order of removal.
