Removal and Installation of AV Switch

AV SWITCH

Removal
1. Disconnect negative battery cable.
2. Remove cluster lid D.

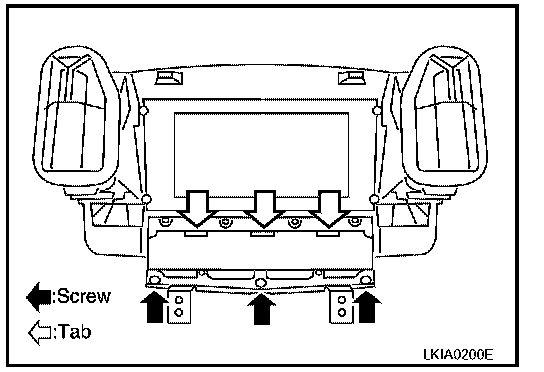

3. Remove screws from the back of AV switch.
4. Carefully release AV switch tabs.
5. Remove AV switch.

Installation
Installation is in the reverse order of removal.
