Cowl: Service and Repair

COWL TOP

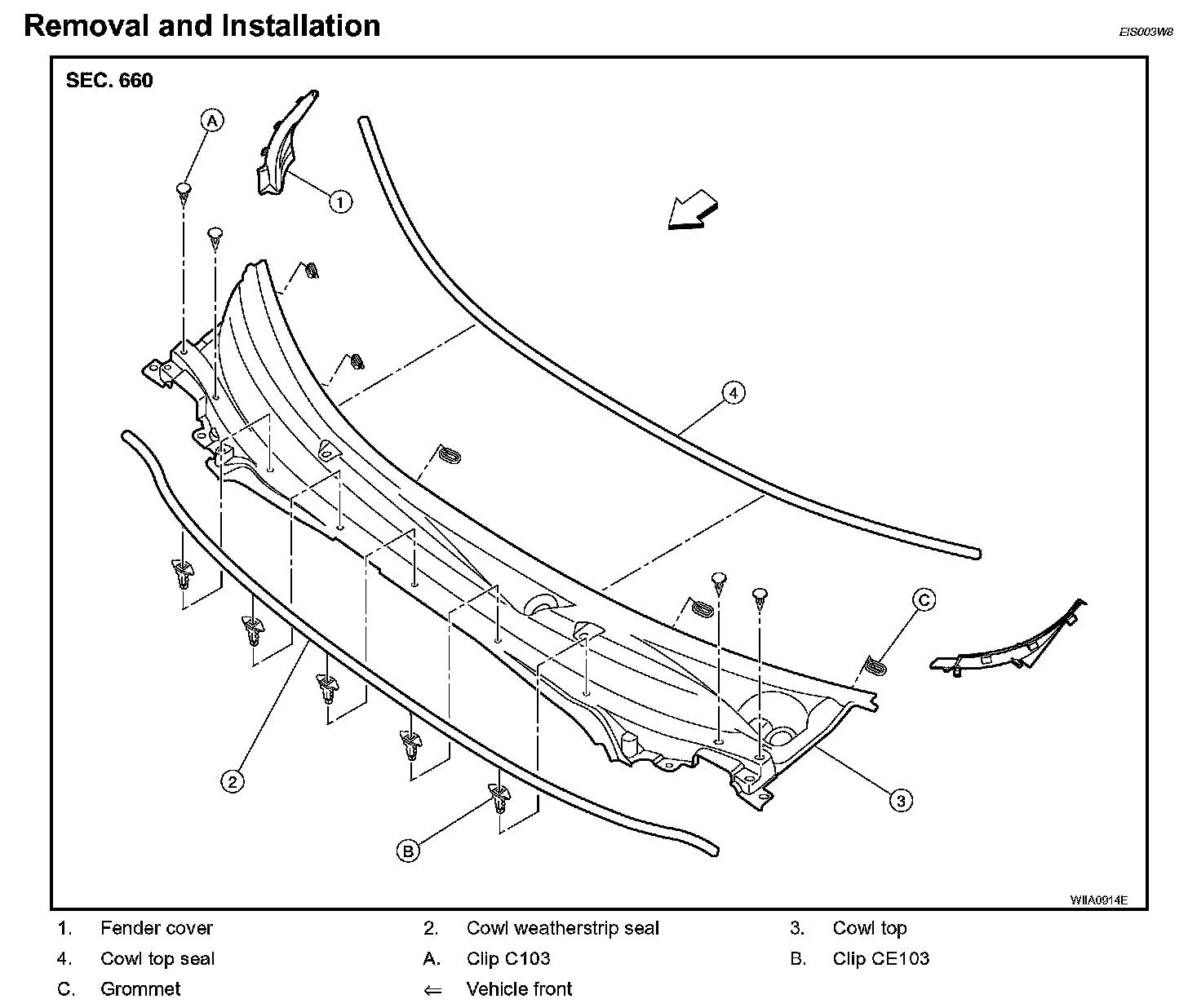

Removal and Installation

REMOVAL
1. Remove wiper arms RH/LH from the vehicle. Refer to "Front Wiper Arms".
2. Remove fender covers.
3. Remove cowl top clips, then partially lift cowl top for access.
4. Disconnect windshield washer tube. Refer to "Washer Tube Layout".
5. Remove cowl top seal and weatherstrip seal.
6. Remove cowl top.
7. Remove windshield washer nozzles and hoses from cowl top.

INSTALLATION
Installation is in the reverse order of removal.
