Fender: Service and Repair

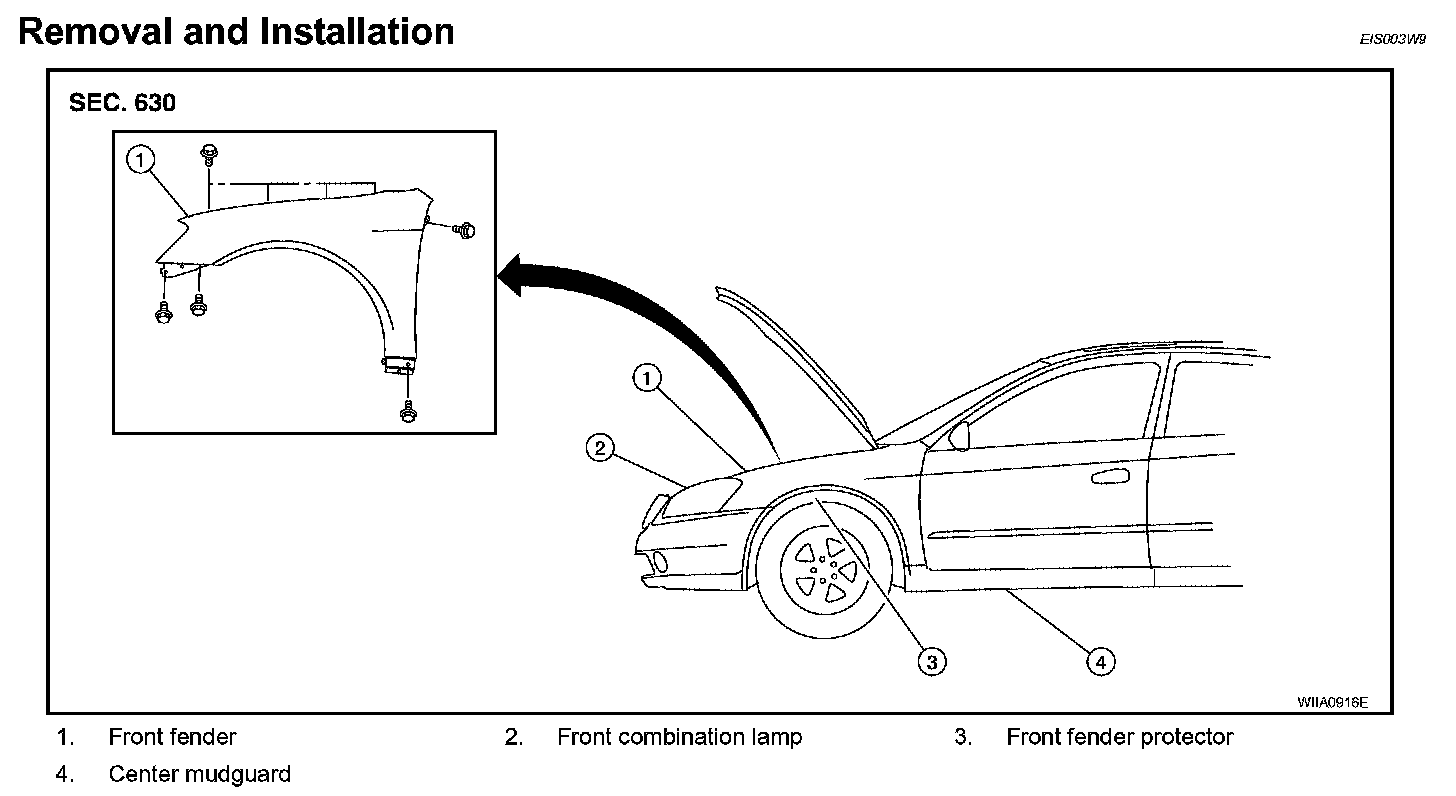

FRONT FENDER




Removal and Installation

REMOVAL
1. Remove front combination lamp.
2. Remove front fender protector.
3. Remove front portion of center mud guard.
4. Remove front fender.

INSTALLATION
Installation is in the reverse order of removal.
