Splash Guard: Service and Repair

MUDGUARD

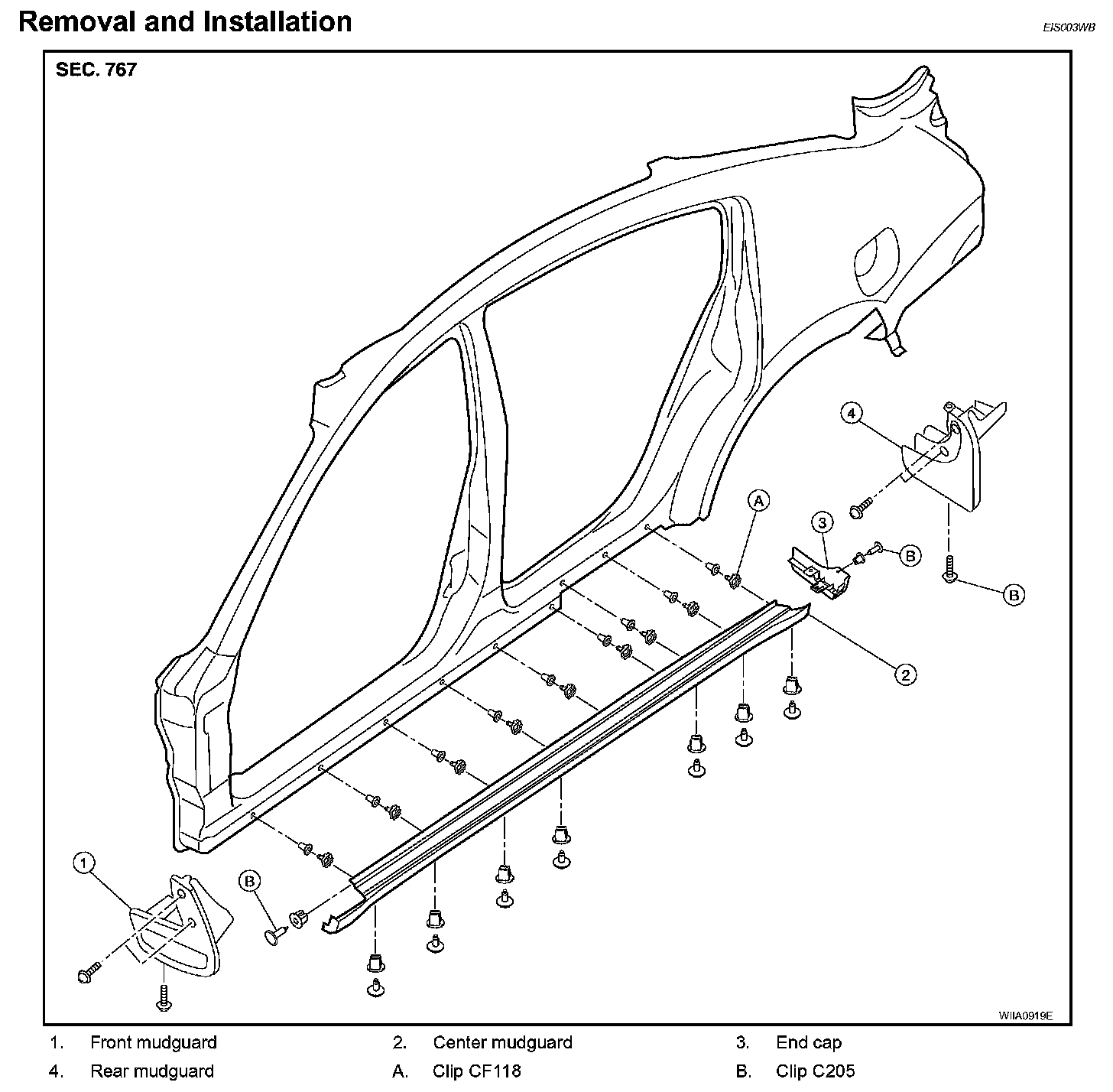

Removal and Installation

REMOVAL
1. Remove front mudguard screws, then remove front mudguard.
2. Remove center mudguard screws.
3. Release clips.
4. Remove center mudguard.
5. Remove rear mudguard screws and release clip.
6. Remove rear mudguard.

INSTALLATION
Installation is in the reverse order of removal.
