Navigation System Schematic

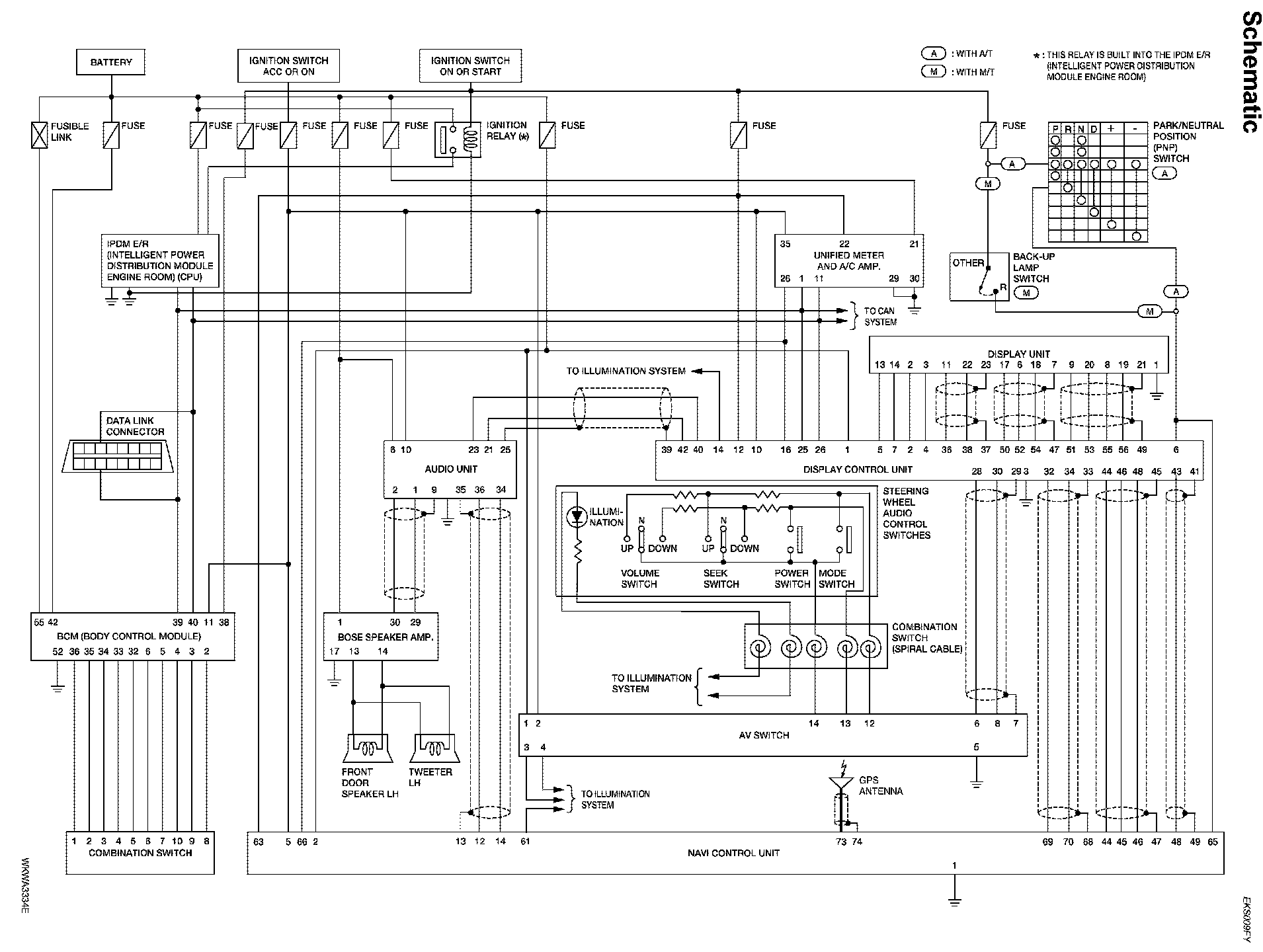

Navigation System Schematic (NAVI):



Navigation System Schematic (COMM):
