Audio Schematic

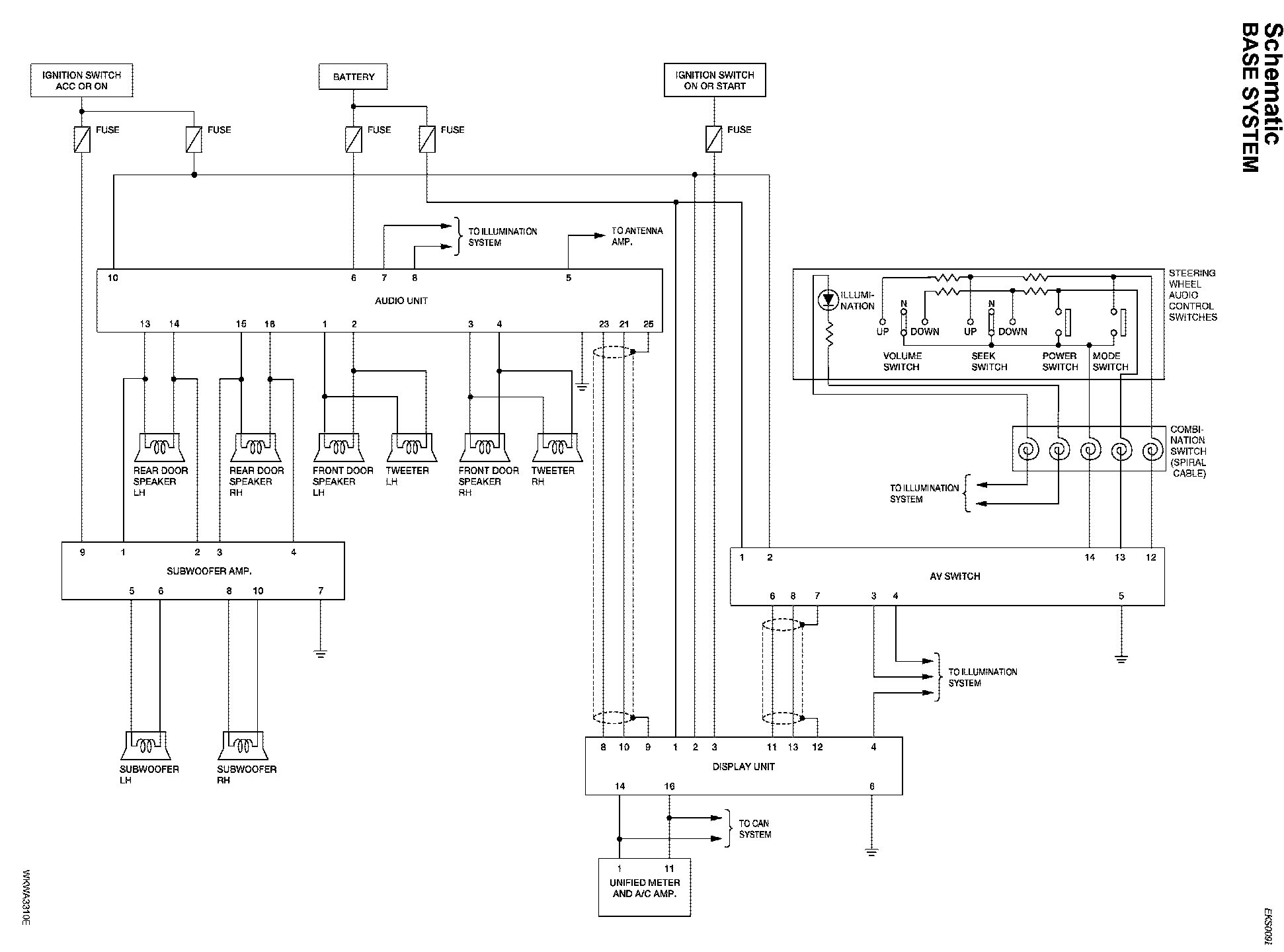

Audio Schematic (Base System):

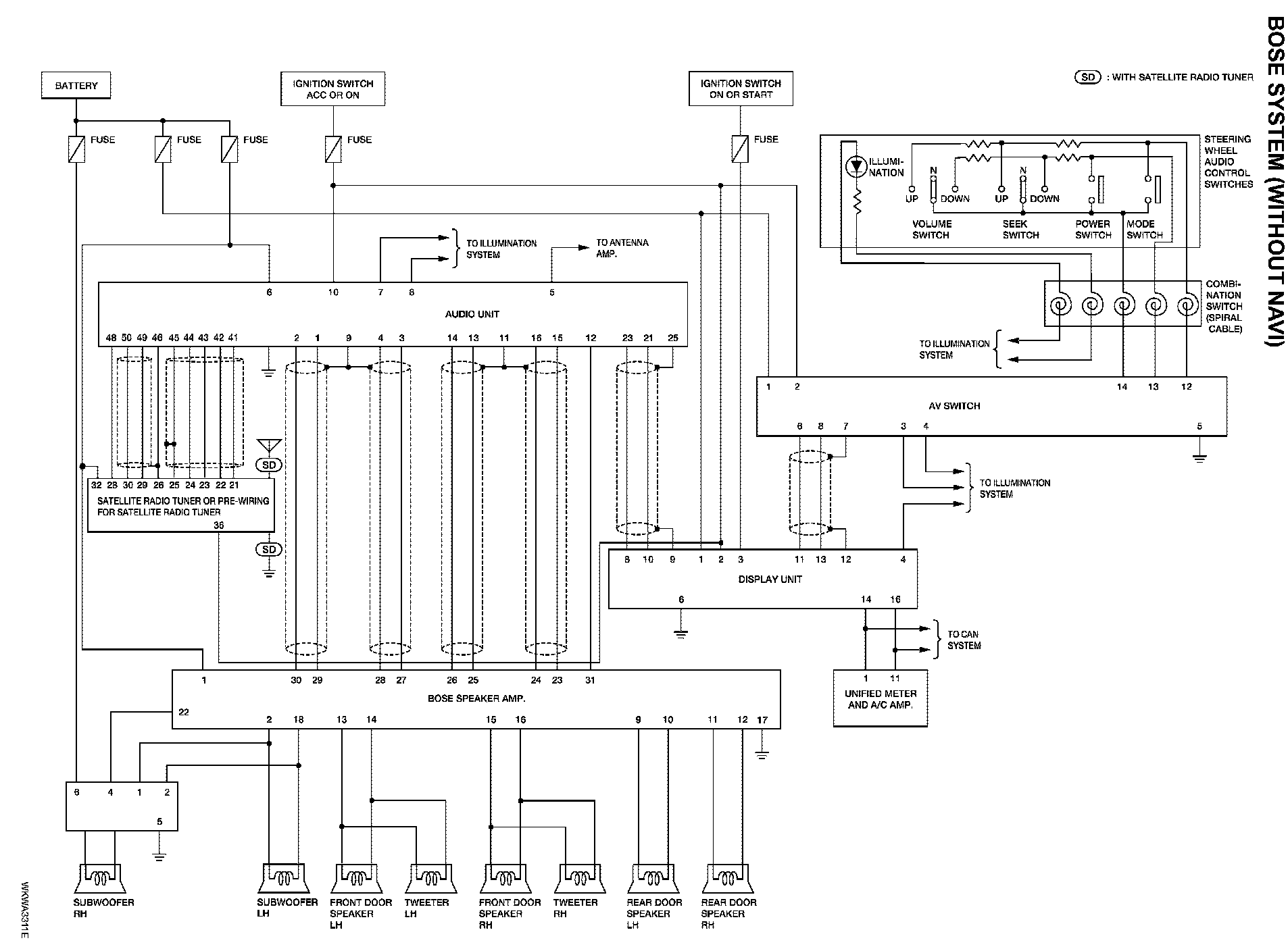

Audio Schematic (Bose System (Without NAVI):

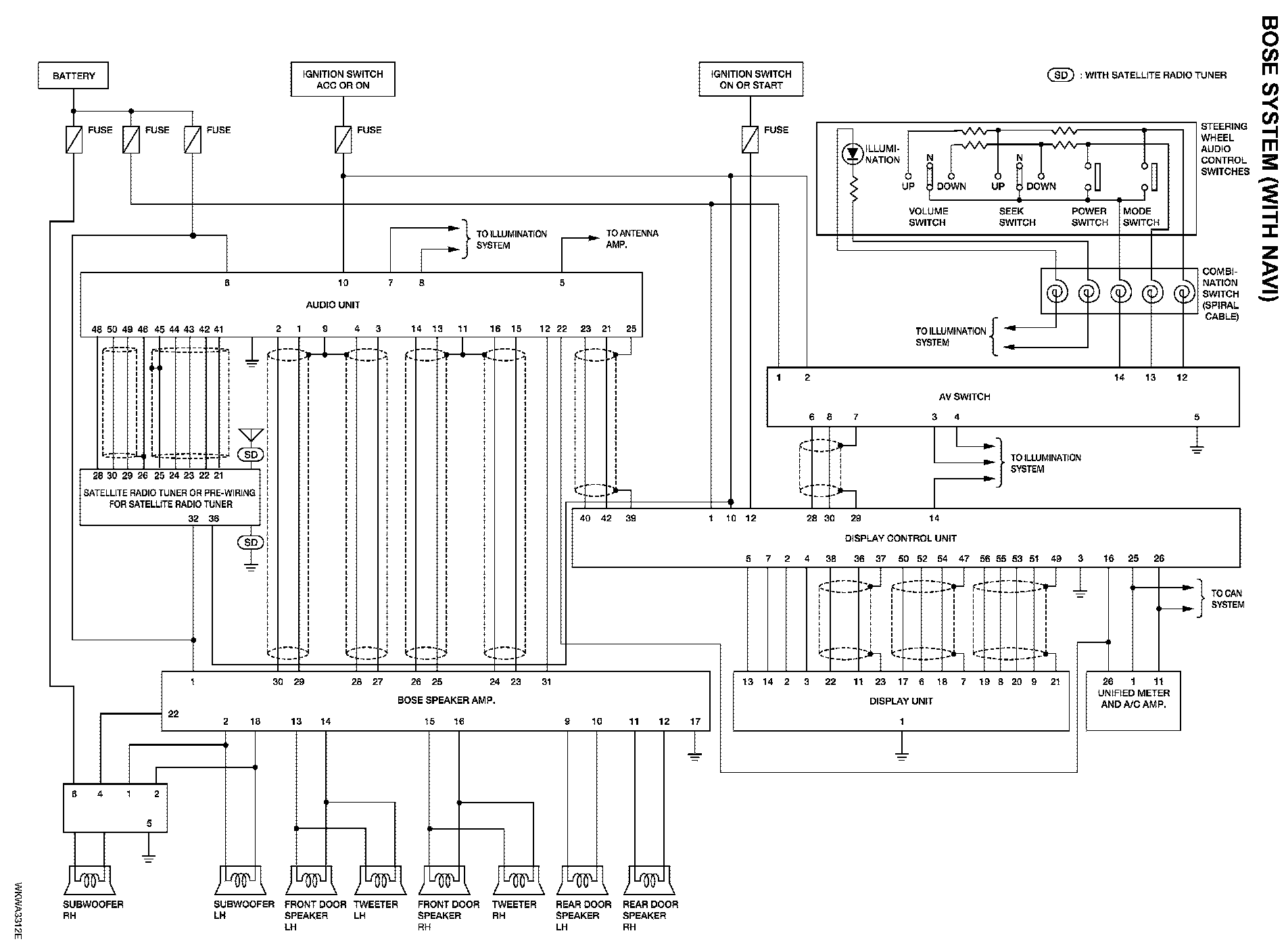

Audio Schematic (Bose System (With NAVI):
