Engine Lubrication: Diagrams

LUBRICATION SYSTEM

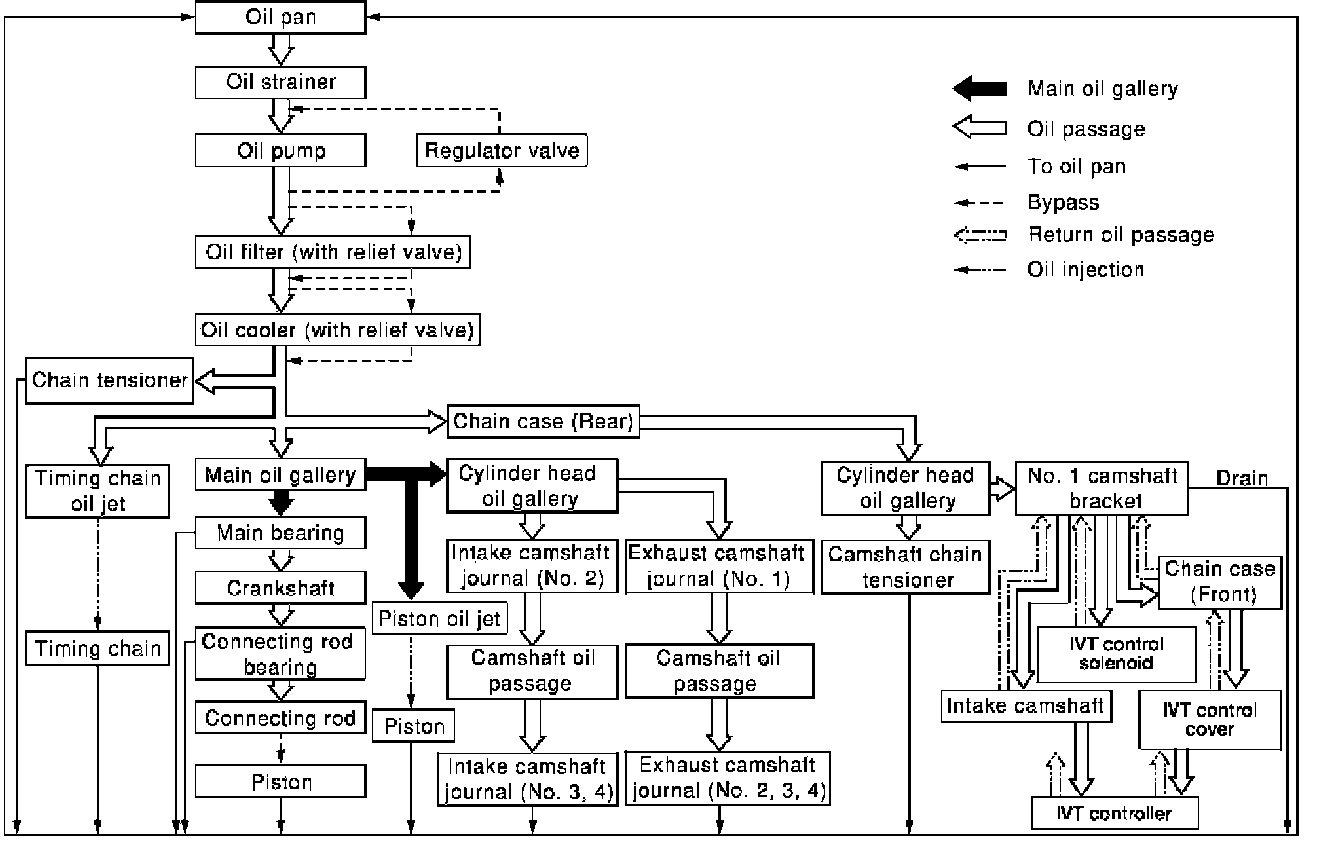

Lubrication Circuit:





Lubrication Circuit

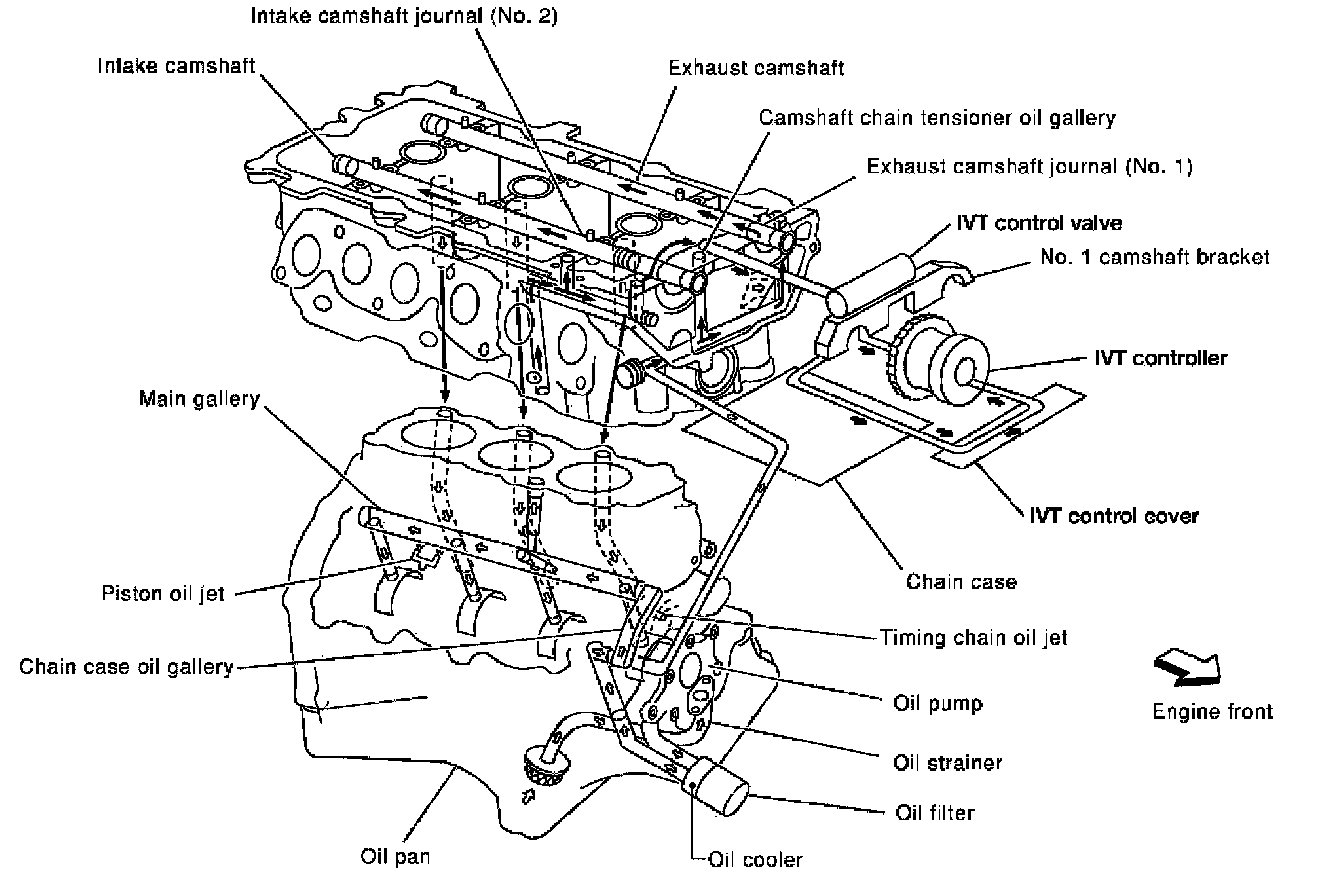

System Drawing:





System Drawing
