Parking Brake Warning Switch: Testing and Inspection

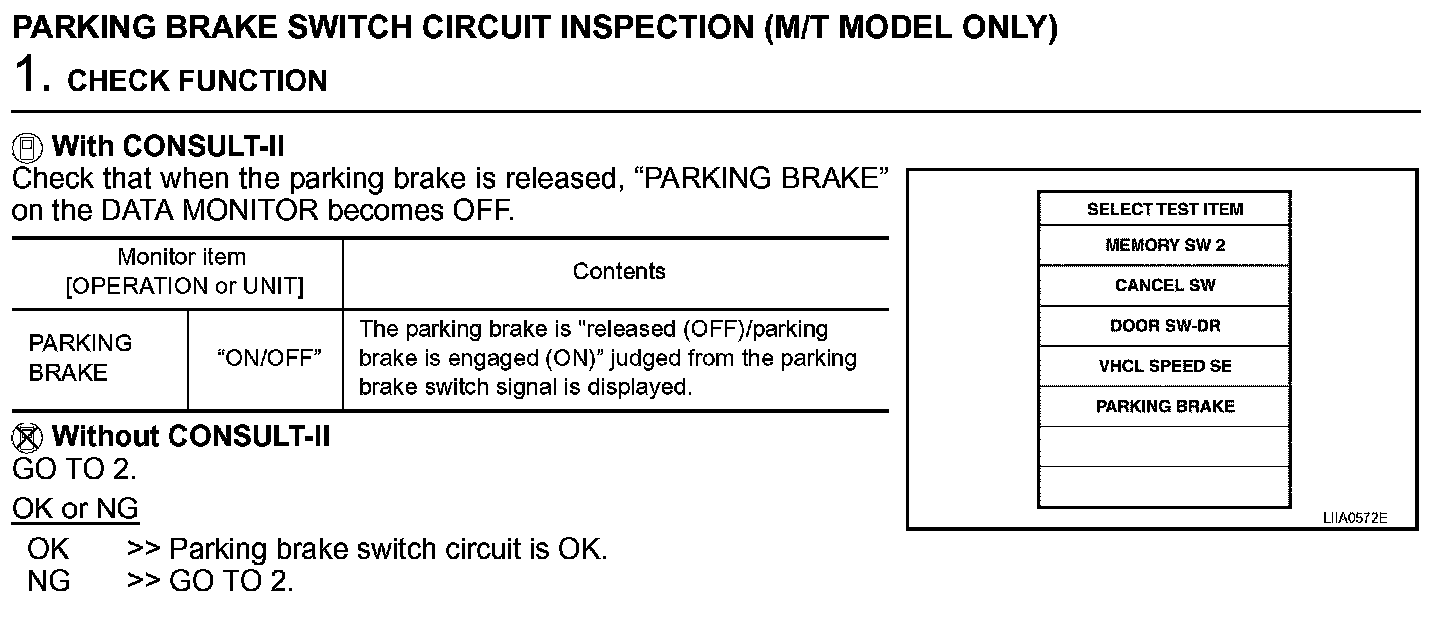

Parking Brake Switch Circuit Inspection (M/T Model Only) (Step 1):

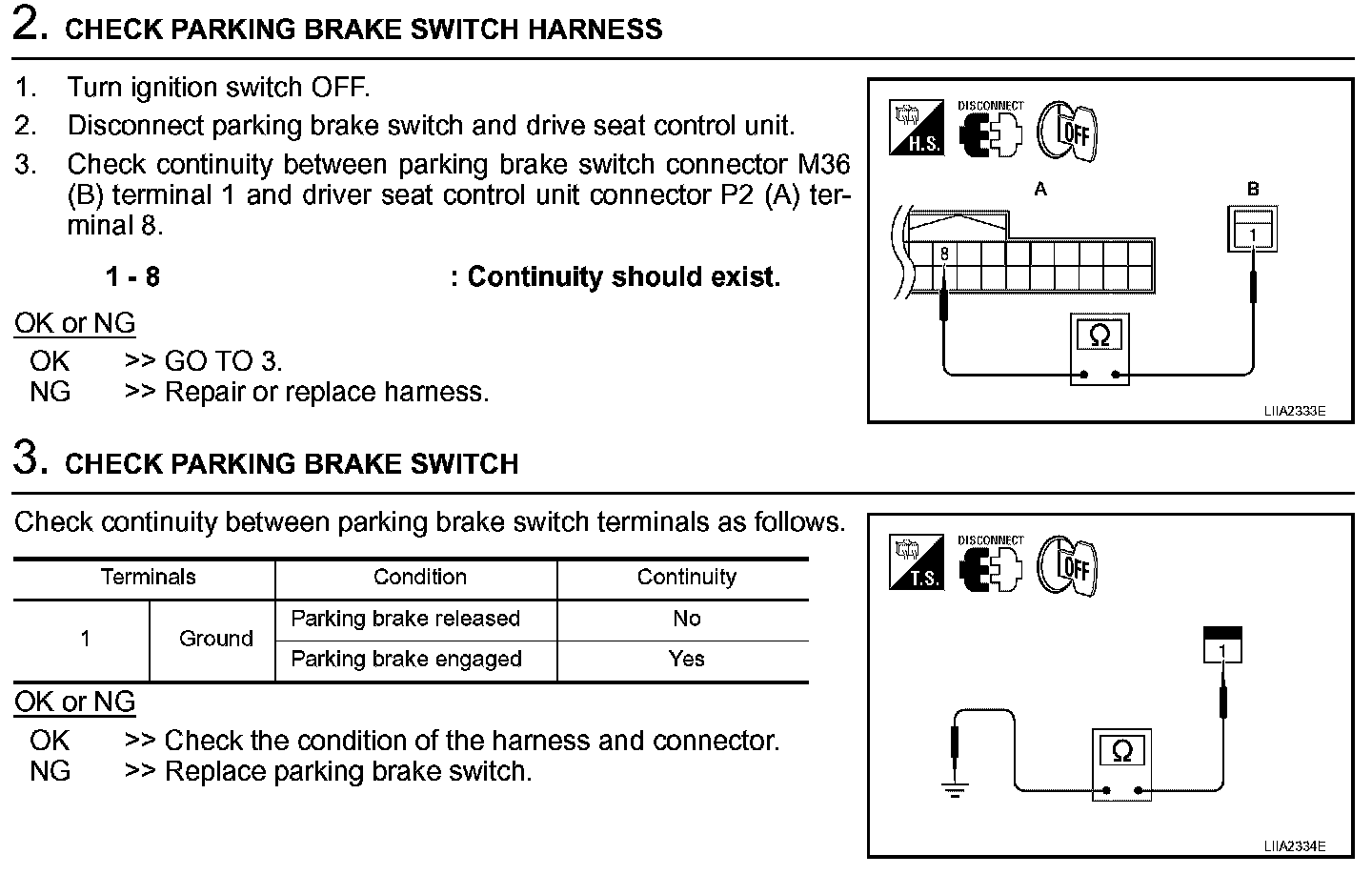

Parking Brake Switch Circuit Inspection (M/T Model Only) (Steps 2 - 3):
