Cornering Lamp: Service and Repair

Removal and Installation

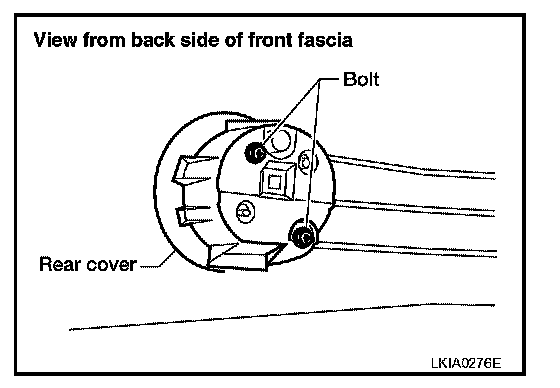

CORNERING LAMP

Removal




1. Disconnect connector.
2. Remove bolts.
3. Remove rear cover.
4. Pull lamp forward out of fascia.

Installation
Installation is in the reverse order of removal.
