Power Supply Routing Circuit Schematic
Power Supply Routing Circuit Schematic

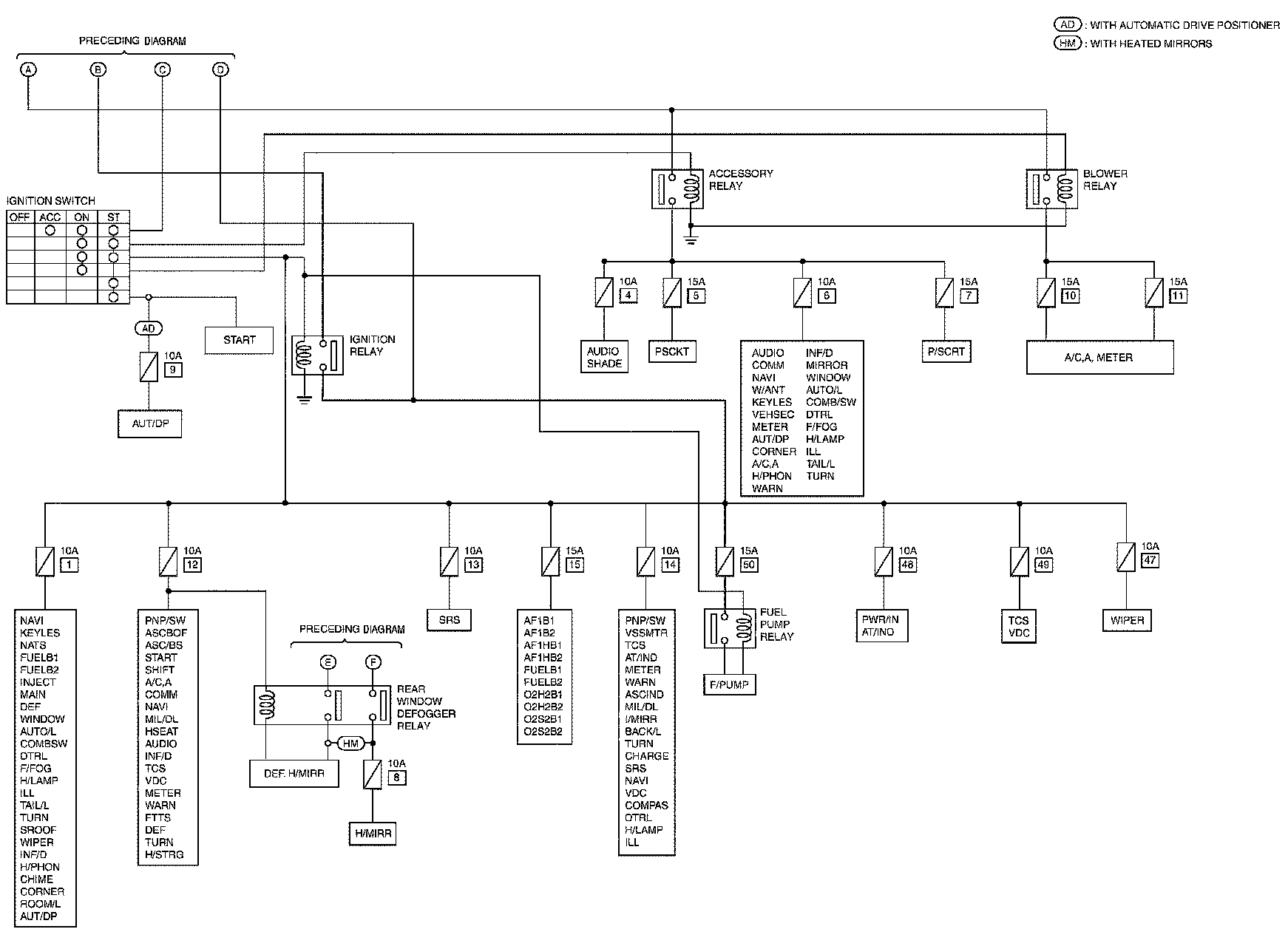

Power Supply Routing Schematic Part 1:
Power Supply Routing Schematic Part 2:
