Pinout Values and Diagnostic Parameters

TCM Input/Output Signal Reference Values

TCM TERMINAL CONNECTOR LAYOUT:

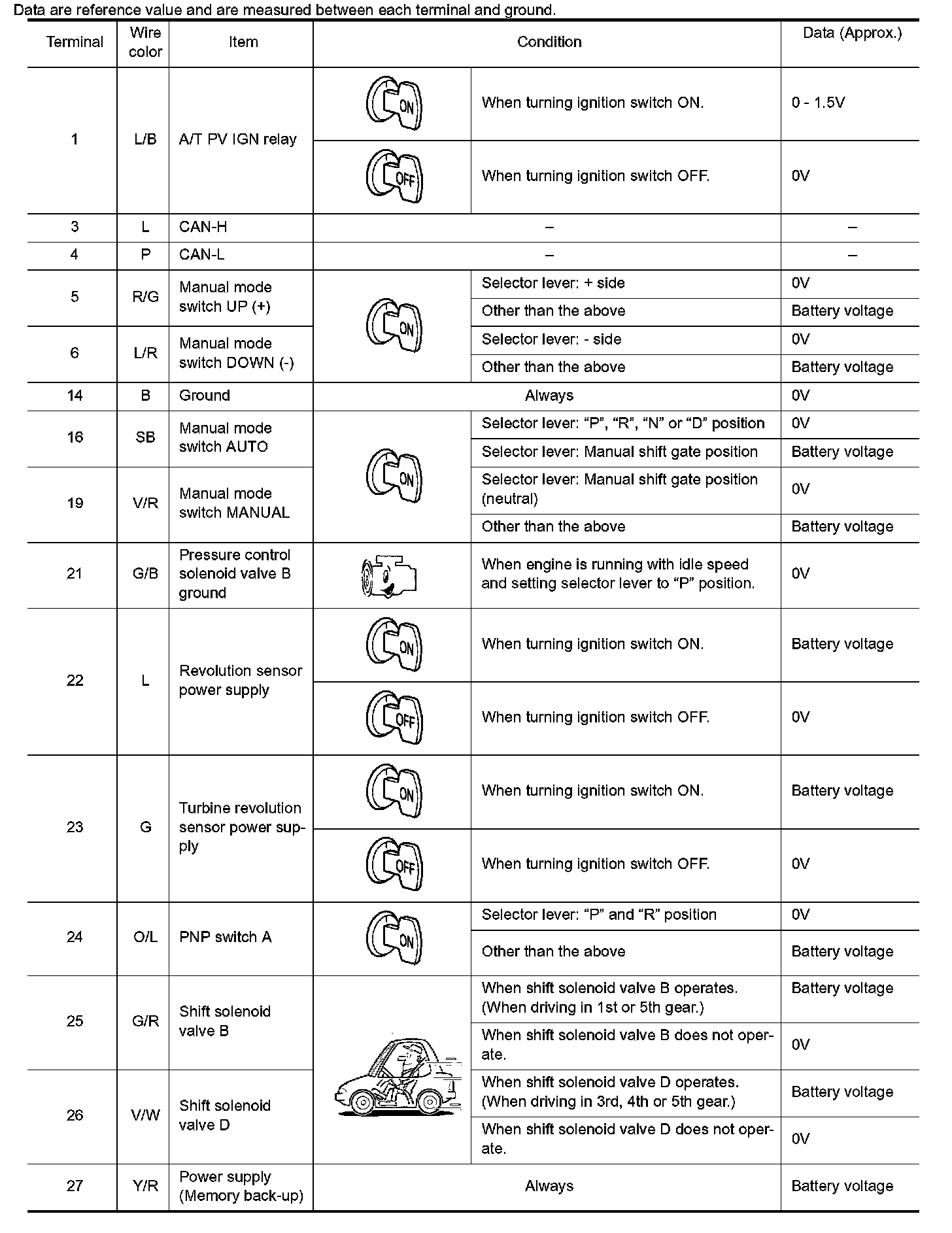

TCM INSPECTION TABLE:

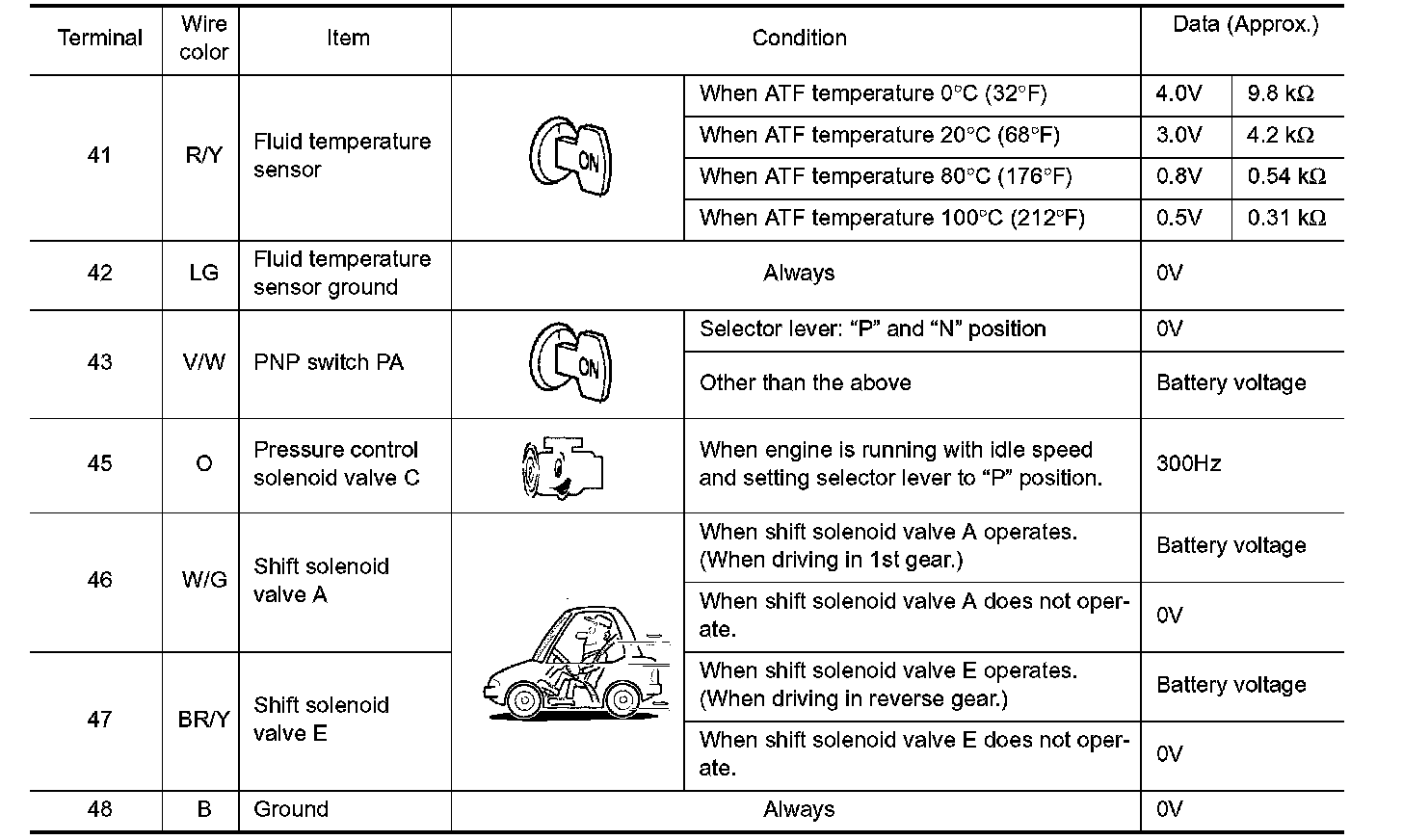

TCM INSPECTION TABLE:




TCM INSPECTION TABLE:
