Home >> Nissan-Datsun >> 2006 >> Maxima V6-3.5L (VQ35DE) >> Repair and Diagnosis >> Sensors and Switches >> Sensors and Switches - Lighting and Horns >> Interior Light Switch >> Locations

Interior Light Switch: Locations

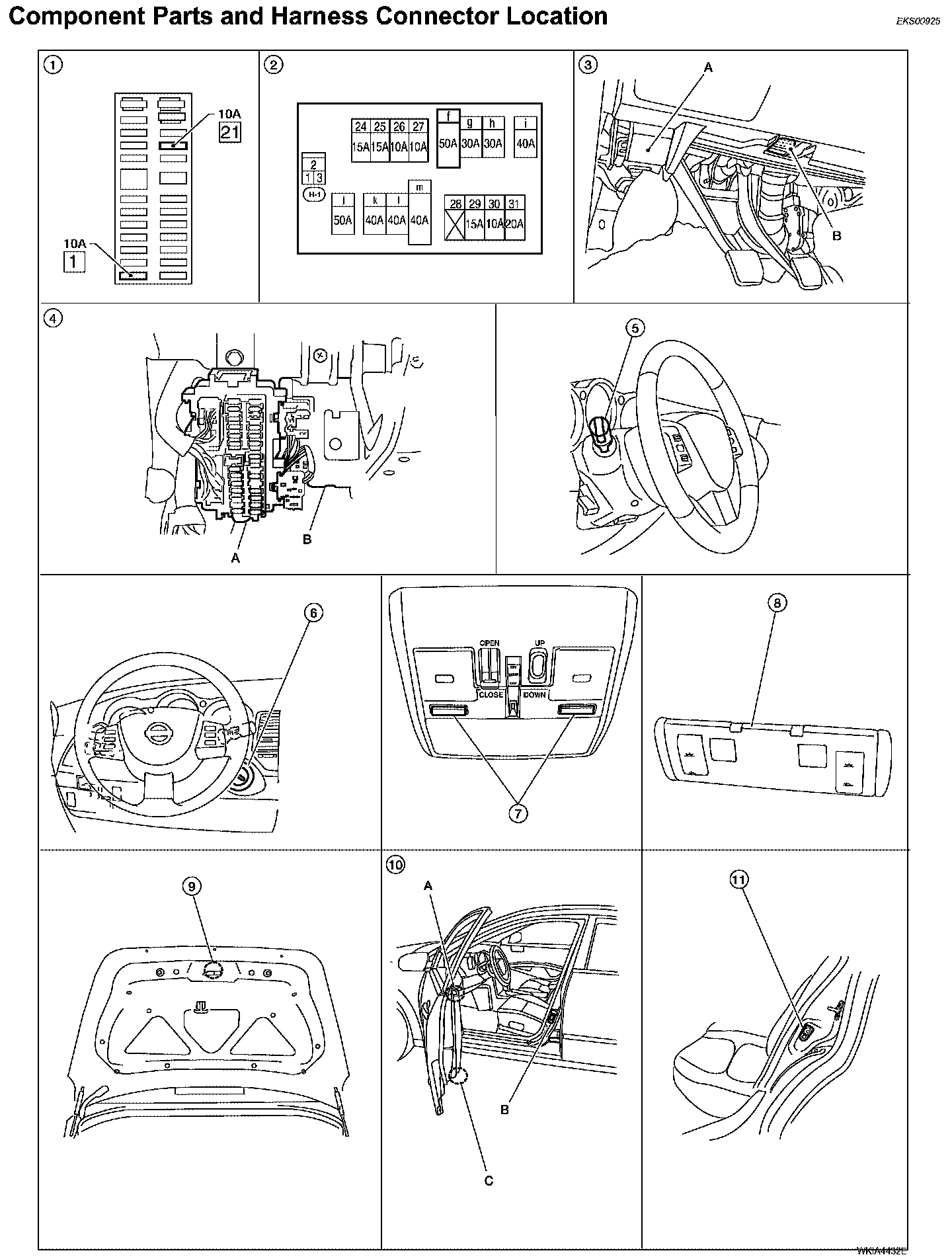

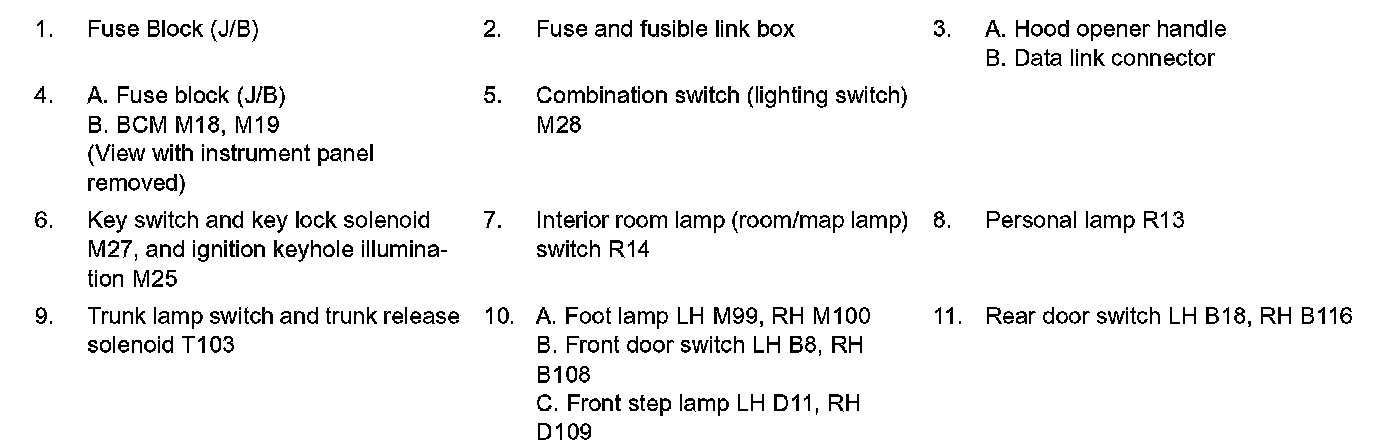

Component Parts And Harness Connector Location:
