Brake Pedal Assy

BRAKE PEDAL
Inspection and Adjustment

Image Symbols:

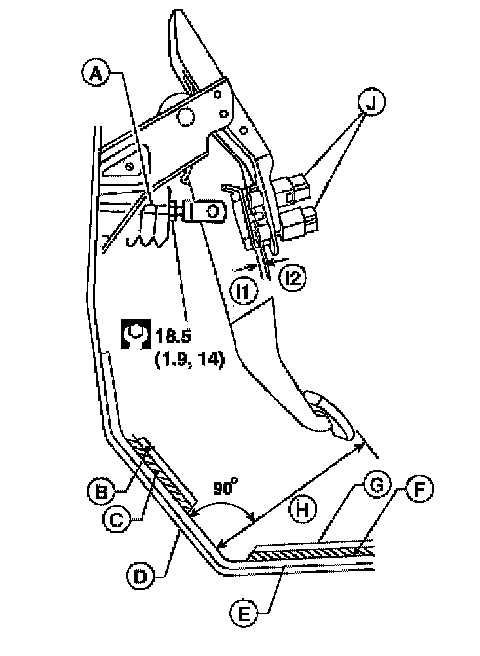

Inspect the brake pedal free height H from dash reinforcement panel using Tool. Adjust if necessary.
Tool: - (J-46532)
^ Input rod (A)
^ Floor carpet (B)
^ Dash insulator (C)
^ Floor panel (D)
^ Dash reinforcement panel (E)
^ Dash insulator (F)
^ Floor carpet (G)
^ Gap (I1, I2)
^ Stop lamp switch and ASCD switch (J)
