Manual Transmission/Transaxle: Description and Operation

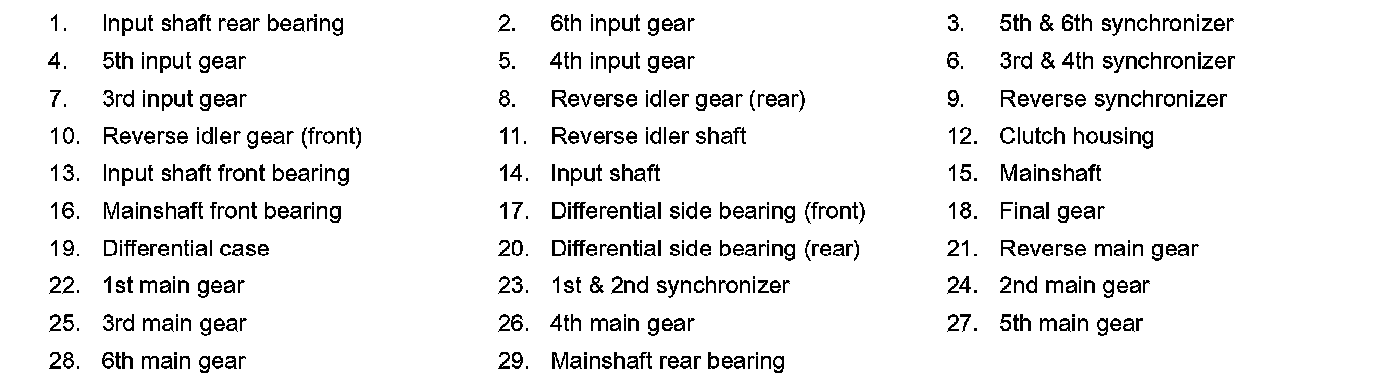

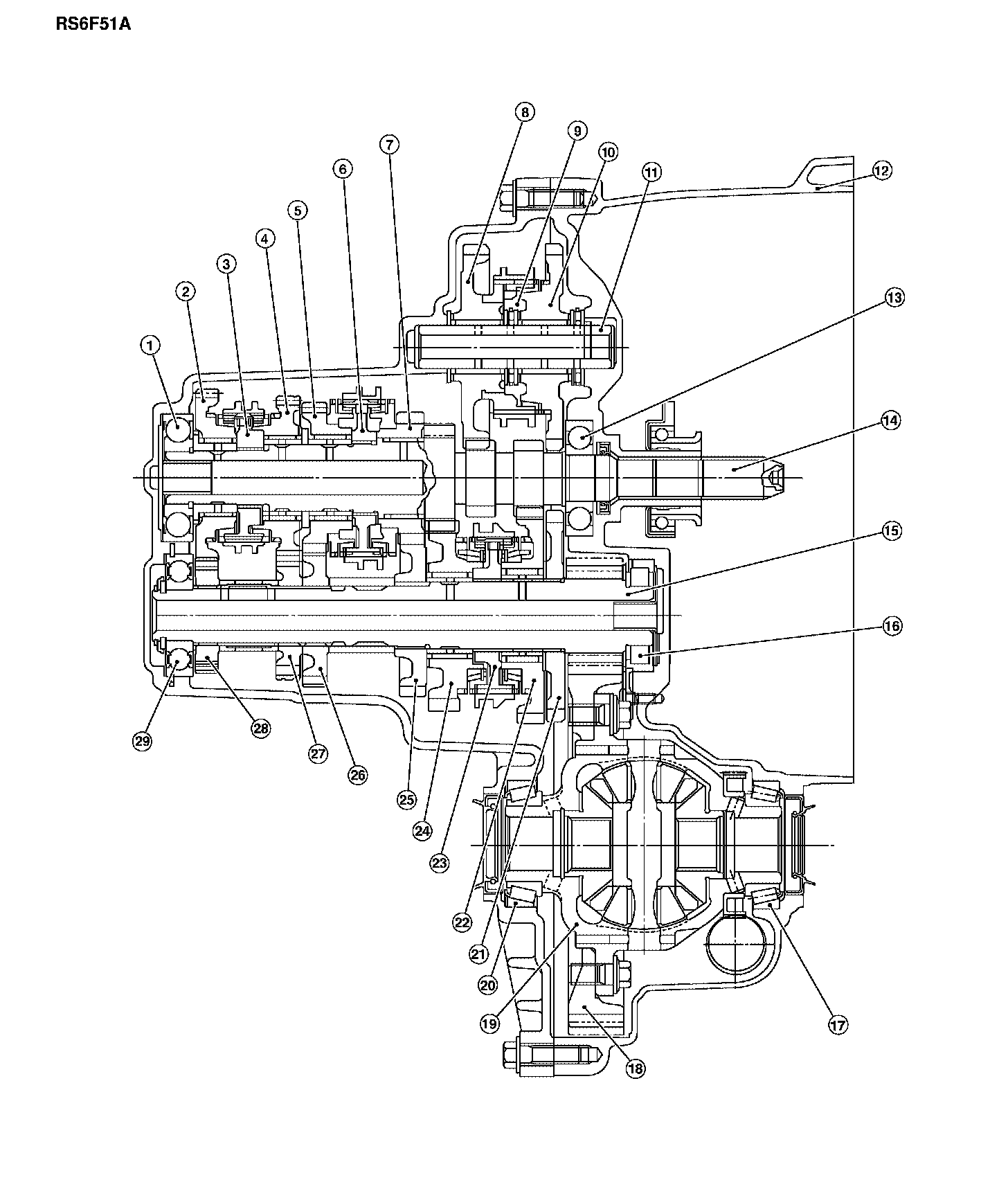

DESCRIPTIONCross-sectional View:
Cross-sectional View:
DOUBLE-CONE SYNCHRONIZER

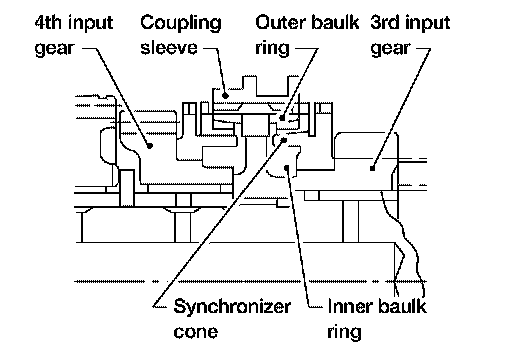

The 3rd gear is equipped with a double-cone synchronizer to reduce the operating force of the shift lever as shown.
TRIPLE-CONE SYNCHRONIZER

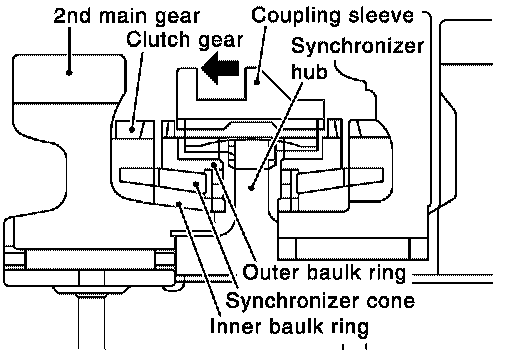

The 1st and 2nd gears are equipped with a triple-cone synchronizer to reduce the operating force of the control lever as shown.
REVERSE GEAR

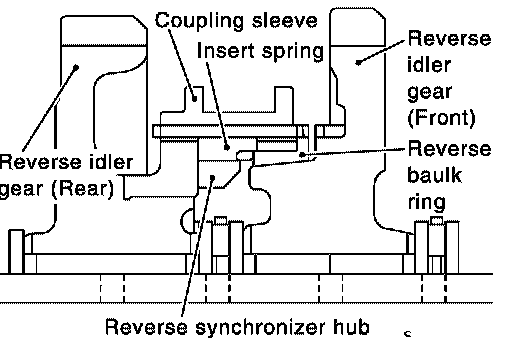

Description of reverse gear components is as shown.
