Oil Checking

Checking
OIL LEAKAGE AND OIL LEVEL
1. Check the transaxle for any oil leaks.
2. Remove the speedometer pinion gear.

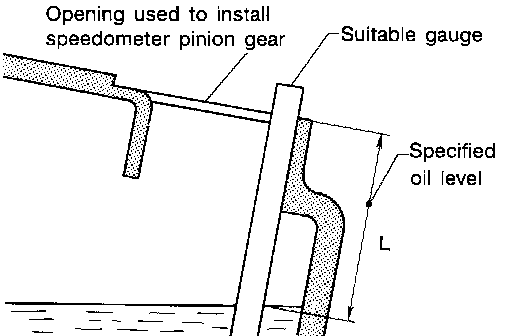

3. Measure the oil level using a suitable gauge as shown. Check that the oil level is at specification "L". Add oil as necessary through the opening for the speedometer pinion gear.
Oil level "L": 49 - 55 mm (1.93 - 2.17 inch)

CAUTION: Never start the engine while checking the oil level.

4. Install a new O-ring on the speedometer pinion gear, and install the speedometer pinion gear in the transaxle case.
Speedometer pinion gear: 5.6 Nm (0.6 kg-m, 50 inch lbs.)

CAUTION: Do not reuse the O-ring.
