Windshield Washer Motor: Service and Repair

Washer Motor

REMOVAL AND INSTALLATION

Removal
1. Remove fender protector.
2. Remove front washer motor connector and hose.

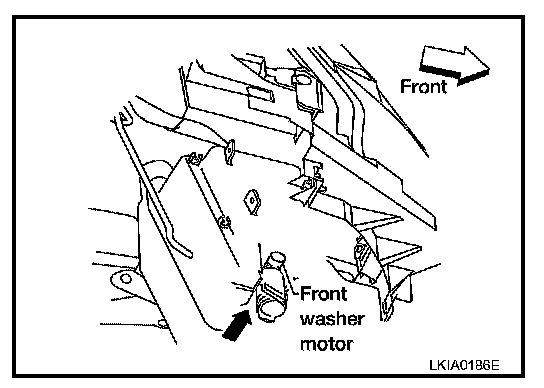

3. Pull out front washer motor in the direction of the arrow as shown and remove the washer pump from the washer fluid reservoir.

Installation

CAUTION: When installing front washer motor, there should be no packing twists, etc.
Installation is in the reverse order of removal.
