Windshield Washer Reservoir: Service and Repair

Washer Fluid Reservoir

REMOVAL AND INSTALLATION

Removal




1. Pull out washer fluid reservoir inlet.
2. Remove fender protector.
3. Remove front washer motor connector and washer fluid level switch connector.

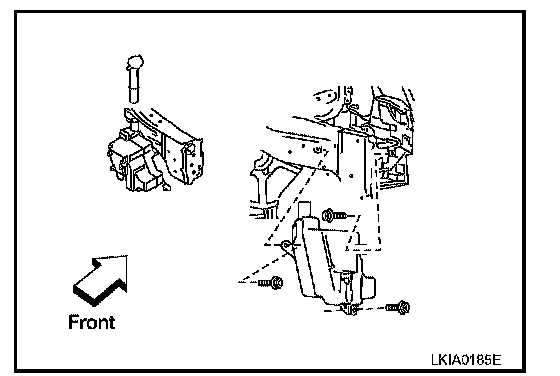

4. Remove washer fluid reservoir screws.
5. Remove washer hose and remove the washer fluid reservoir from the vehicle.

Installation

CAUTION: After installation, add water up to the upper level of the washer fluid reservoir inlet and check for water leaks.
Installation is in the reverse order of removal.
