Cabin Air Filter / Purifier: Service and Repair
IN-CABIN MICROFILTERRemoval and Installation

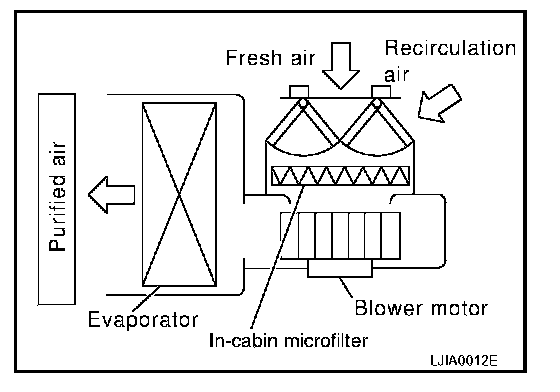

FUNCTION
Air inside passenger compartment is kept clean at either recirculation or fresh mode by installing in-cabin microfilter into blower unit.
REPLACEMENT TIMING
Refer to "Schedule 1" or "Schedule 2". Caution label is affixed inside the glove box.

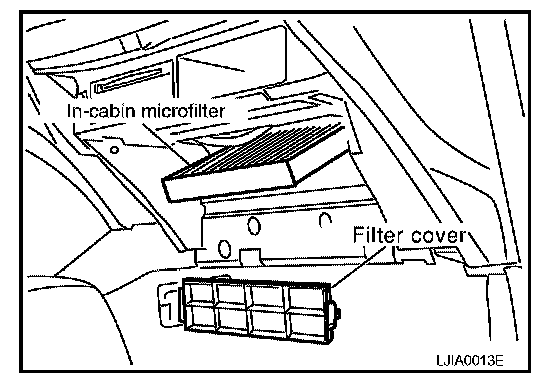

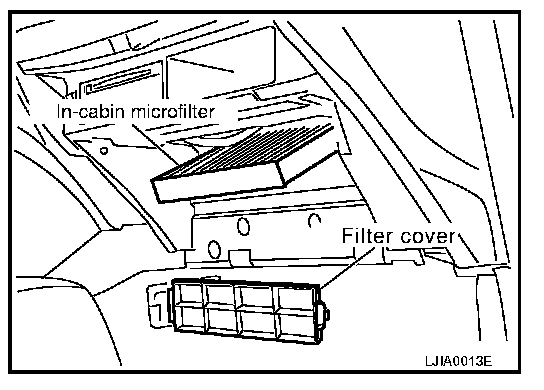

REPLACEMENT PROCEDURES
1. Remove glove box assembly.
2. Remove in-cabin microfilter cover.
3. Remove the in-cabin microfilter from blower unit.
4. Replace with new in-cabin microfilter and reinstall cover on blower unit.
5. Reinstall glove box assembly.
