Evaporator Temperature Sensor / Switch: Testing and Inspection

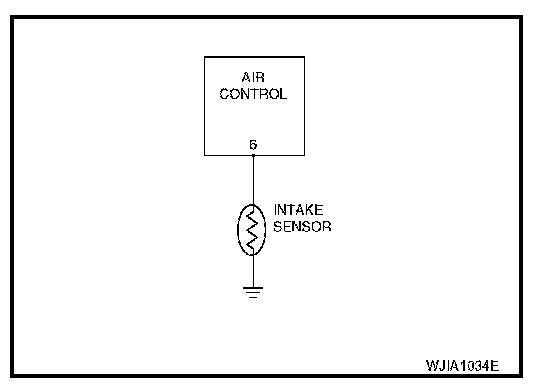

INTAKE SENSORIntake Sensor Circuit
COMPONENT DESCRIPTION
Diagnostic Procedure (Step 1):
Intake Sensor

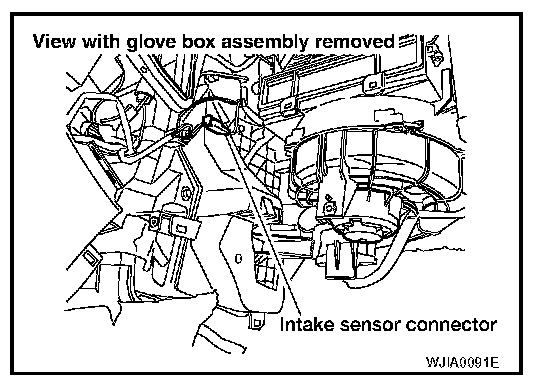

The intake sensor is located on the heater and cooling unit. It converts temperature of air after it passes through the evaporator into a resistance value which is then input to the air control.

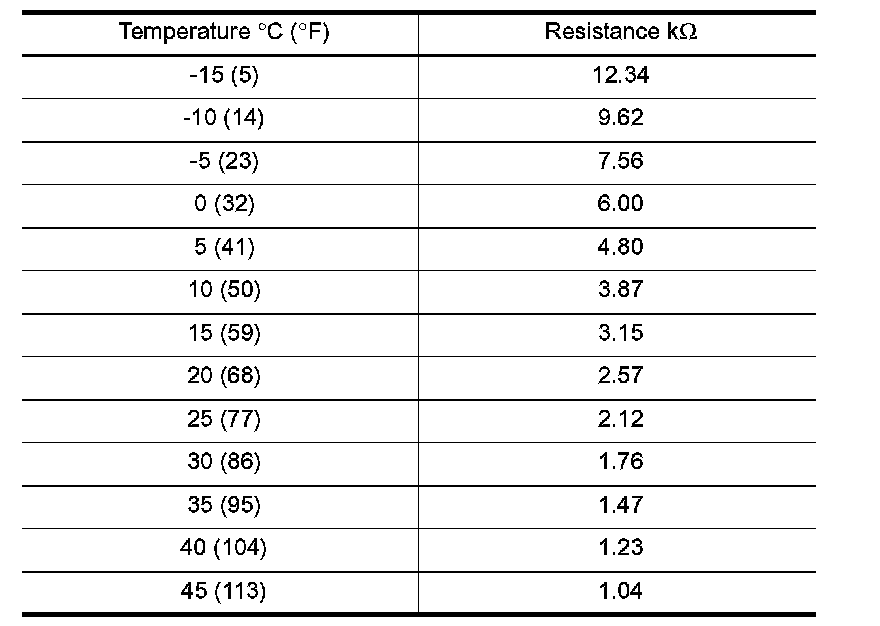

After disconnecting intake sensor harness connector, measure resistance between terminals 1 and 2 at sensor harness side, using the table.
If NG, replace intake sensor.
Diagnostic Procedure (Step 1):
Diagnostic Procedure (Steps 2 - 3):
DIAGNOSTIC PROCEDURE
SYMPTOM: Intake sensor circuit is open or shorted.
