Wiring Diagram - Coupe
Wiring Diagram - Coupe
Wiring Diagram - Coupe

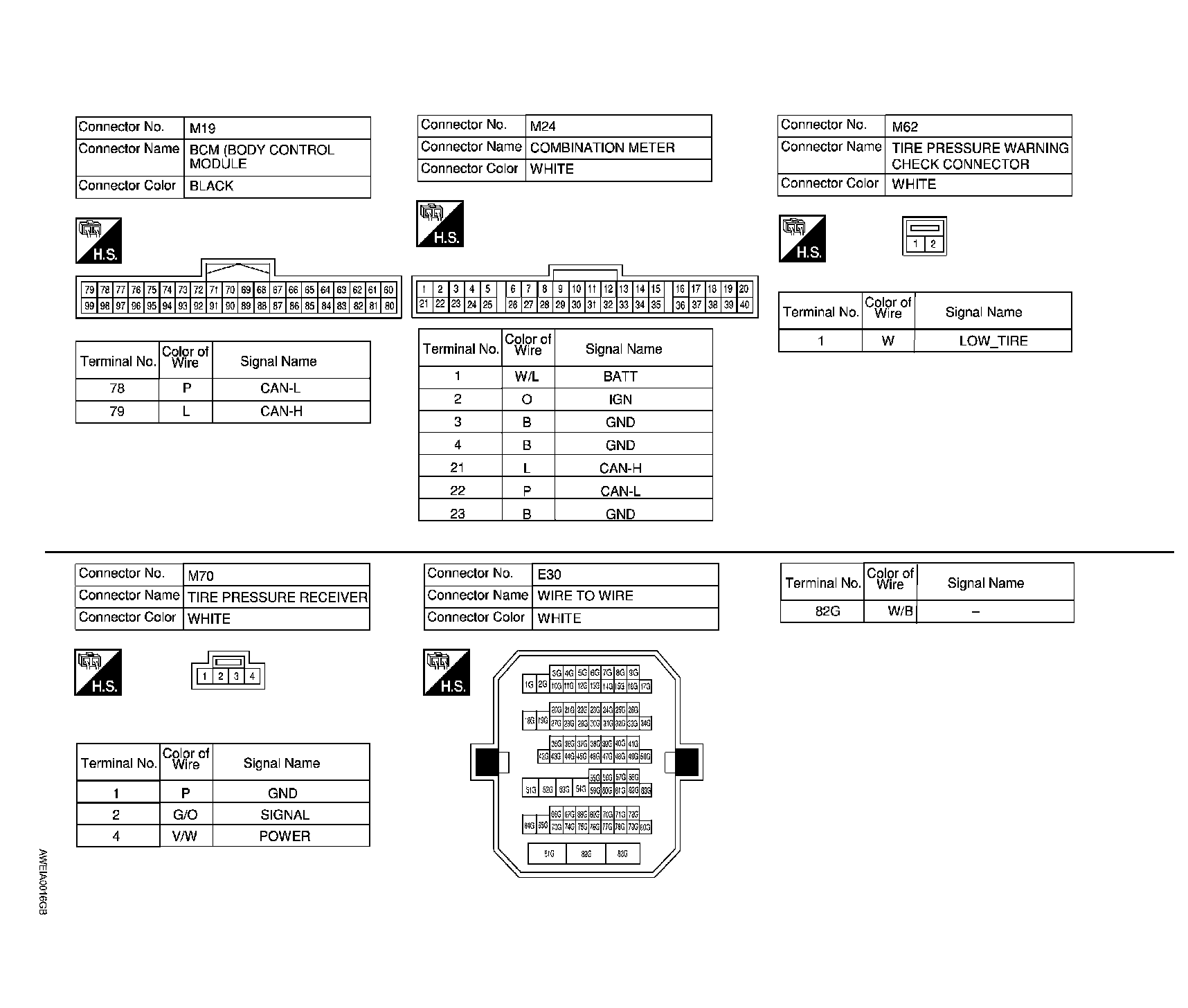

Wiring Diagram - Coupe - Part 1:
Wiring Diagram - Coupe - Part 2:
Wiring Diagram - Coupe - Part 3:
