B1017 - B1022 OCCUPANT CLASSIFICATION SYSTEM

Description

DTC B1017 - B1022 OCCUPANT CLASSIFICATION SYSTEM (OCS)
The occupant classification system control unit is wired to the air bag diagnosis sensor unit. The air bag diagnosis sensor unit will monitor the occupant classification system for control unit and sensor mat failures and interuptions in communication between the OCS control unit and the air bag diagnosis sensor unit.

PART LOCATION
Refer to "SRS Component Parts Location".

DTC Logic

DTC DETECTION LOGIC




With CONSULT-III

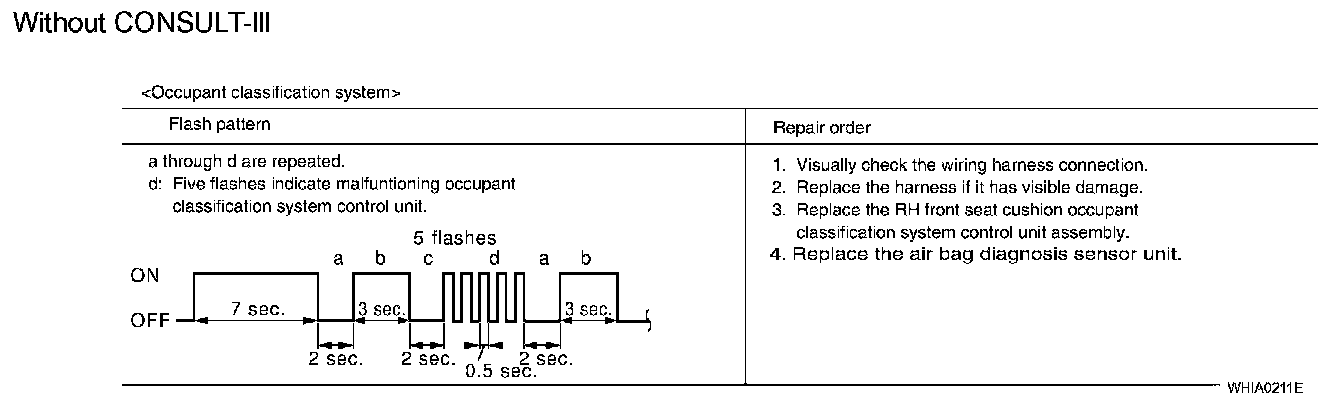

Without CONSULT-III

Step 1-2:

Step 3:

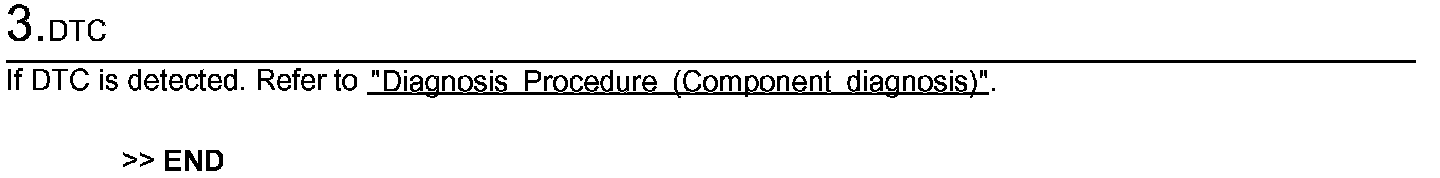

DTC CONFIRMATION PROCEDURE (With CONSULT-III)

Step 1-6:

DTC CONFIRMATION PROCEDURE (Without CONSULT-III)

Step 1-2:

Step 3-5:

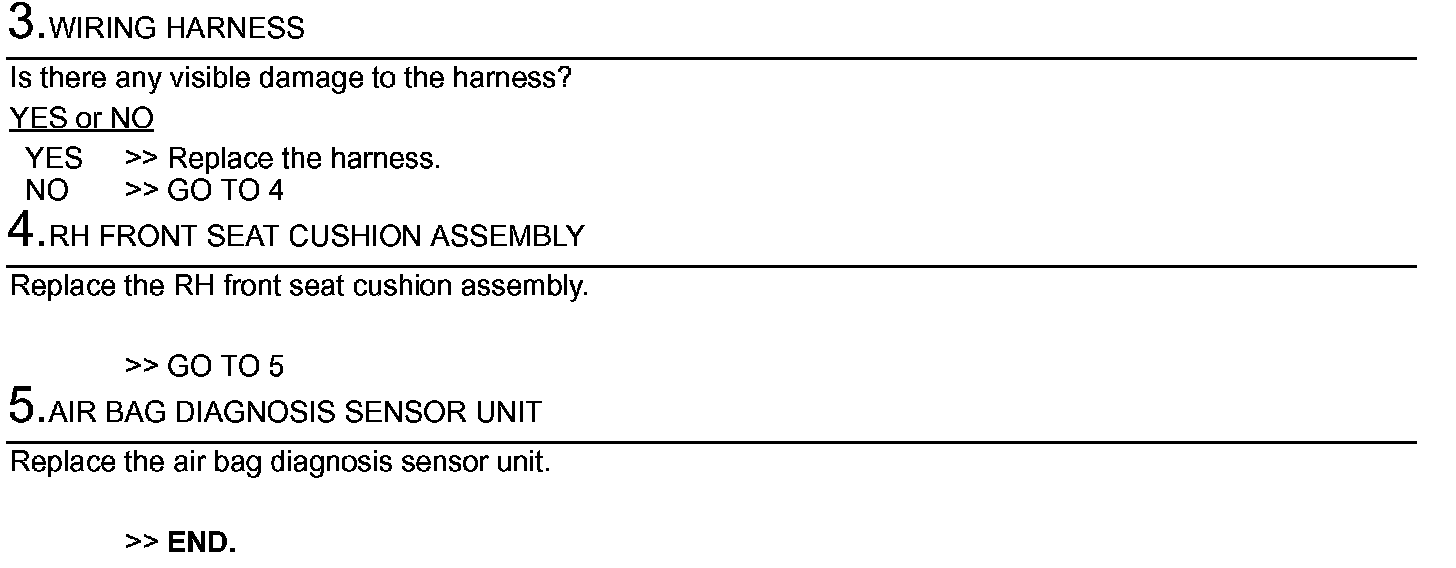

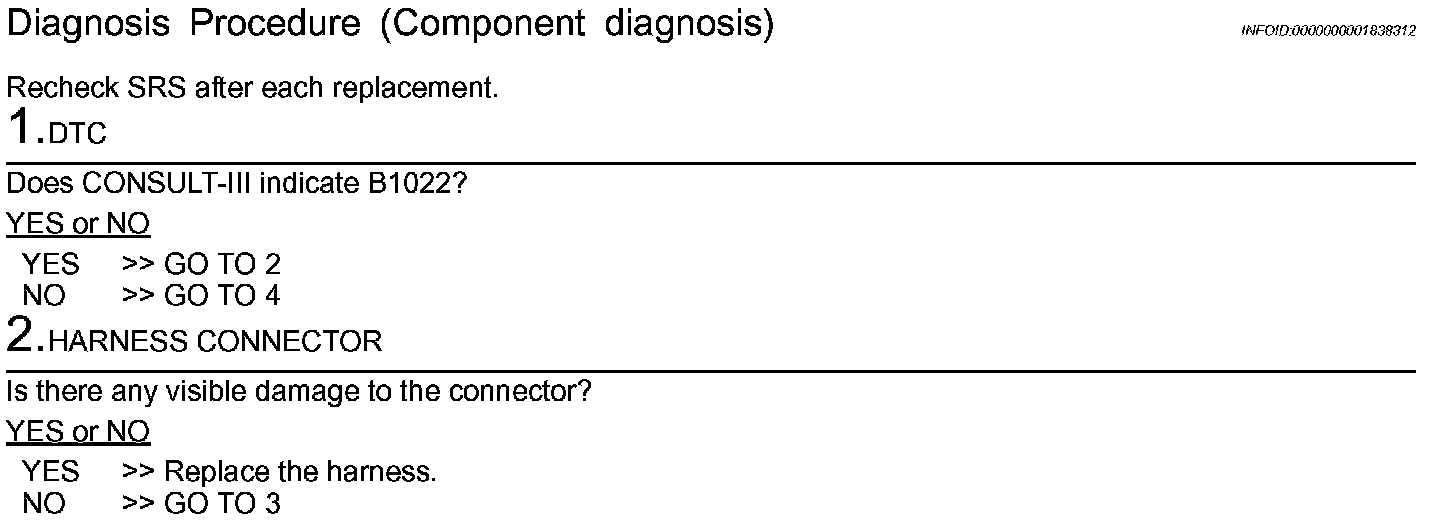

Diagnosis Procedure (Component diagnosis)
