B1083
B1081 - B1084 SEAT BELT PRE-TENSIONER RHDescription
DTC B1081 - B1084 SEAT BELT PRE-TENSIONER RH
The seat belt pre-tensioner RH is wired to the air bag diagnosis sensor unit. The air bag diagnosis sensor unit will monitor for opens and shorts in detected lines to the seat belt pre-tensioner RH.
PART LOCATION
Refer to "SRS Component Parts Location".
DTC Logic
DTC DETECTION LOGIC

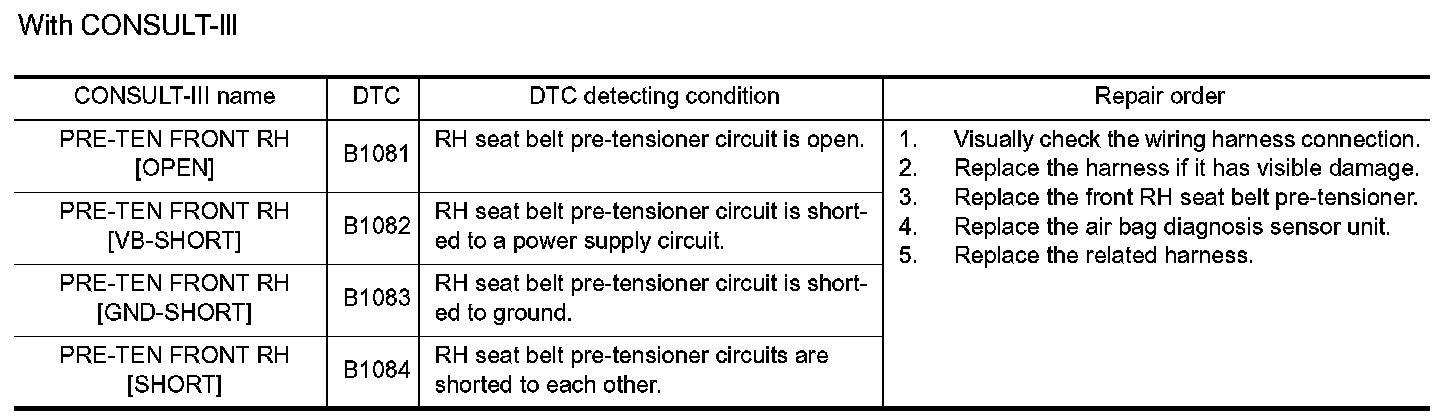

With CONSULT-III

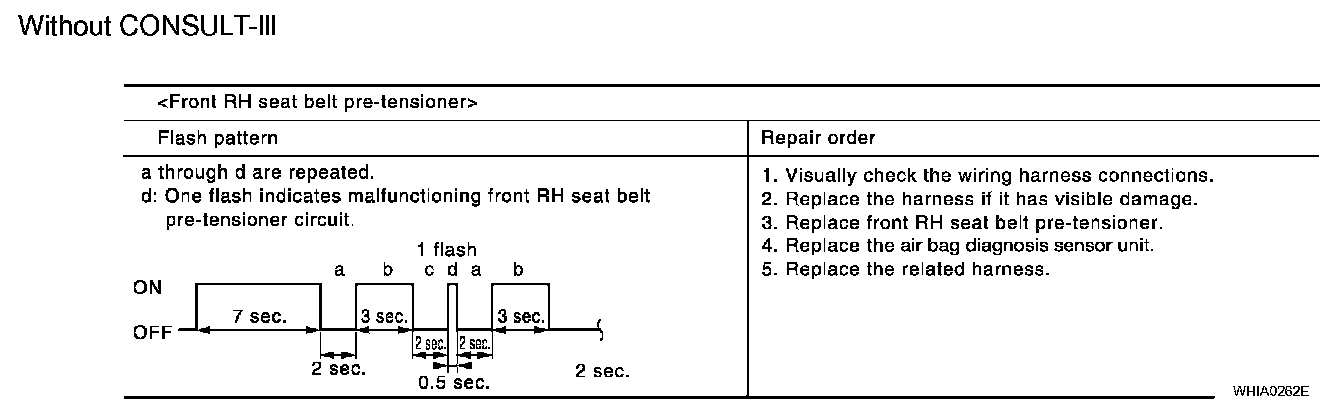

Without CONSULT-III
Step 1-3:
DTC CONFIRMATION PROCEDURE (With CONSULT-III)
Step 1-6:

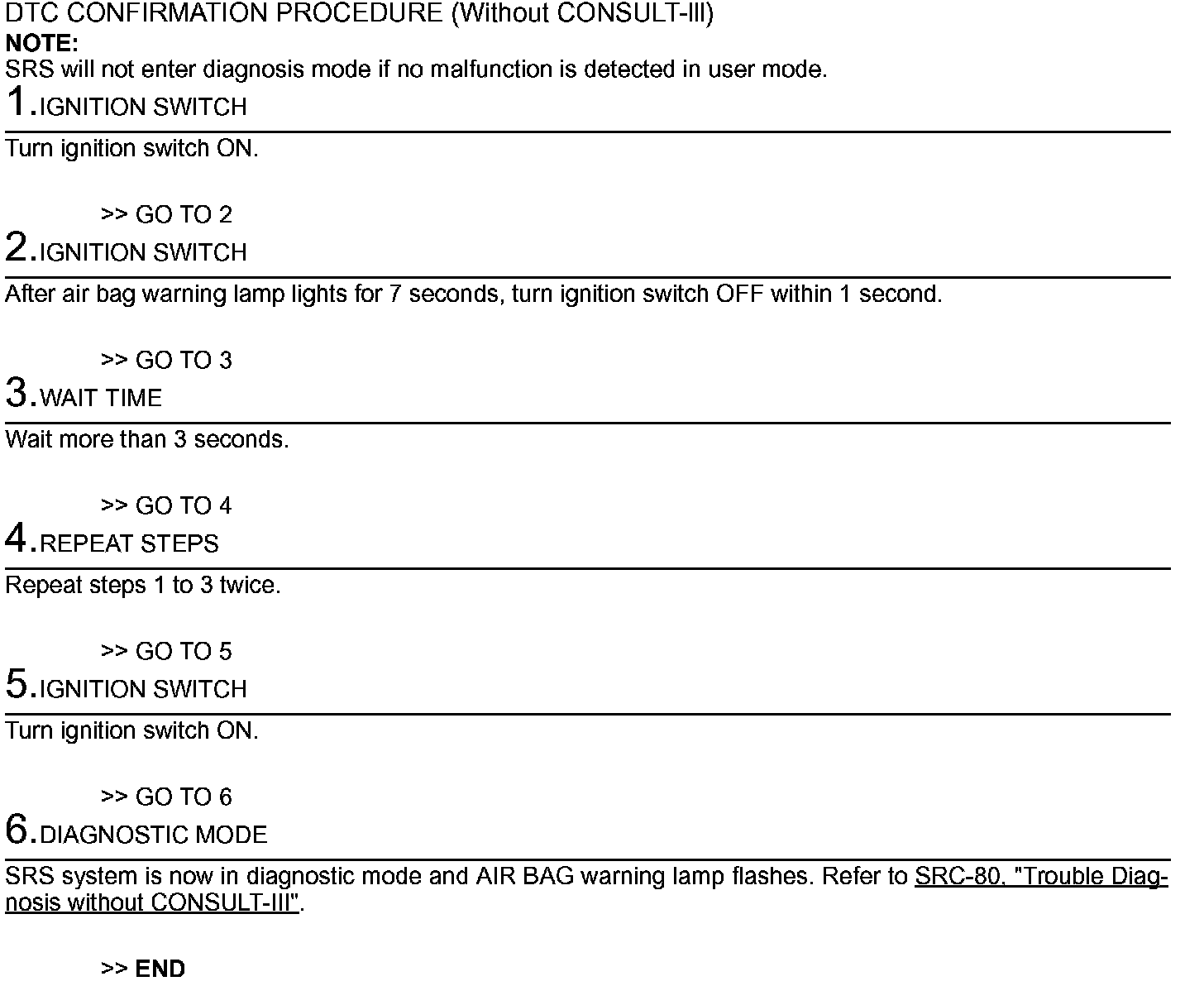

DTC CONFIRMATION PROCEDURE (Without CONSULT-III)
Step 1-4:
Step 4 (Continued)-5:

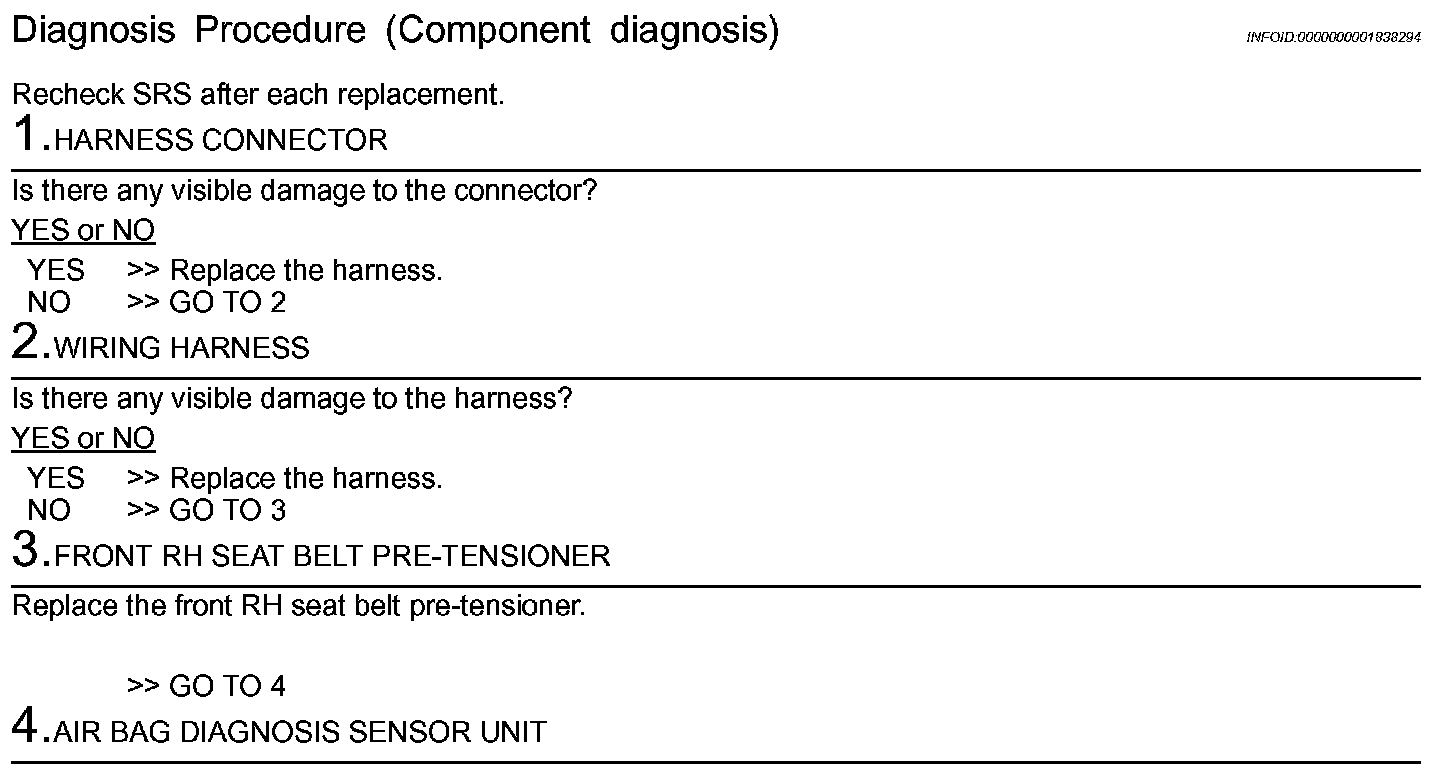

Diagnosis Procedure (Component diagnosis)
