B1087
B1086 - B1089 SEAT BELT PRE-TENSIONER LHDescription
DTC B1086 - B1089 SEAT BELT PRE-TENSIONER LH
The seat belt pre-tensioner LH is wired to the air bag diagnosis sensor unit. The air bag diagnosis sensor unit will monitor for opens and shorts in detected lines to the seat belt pre-tensioner LH.
PART LOCATION
Refer to "SRS Component Parts Location".
DTC Logic
DTC DETECTION LOGIC
With CONSULT-III
Without CONSULT-III
Step 1-3:
DTC CONFIRMATION PROCEDURE (With CONSULT-III)
Step 1-6:

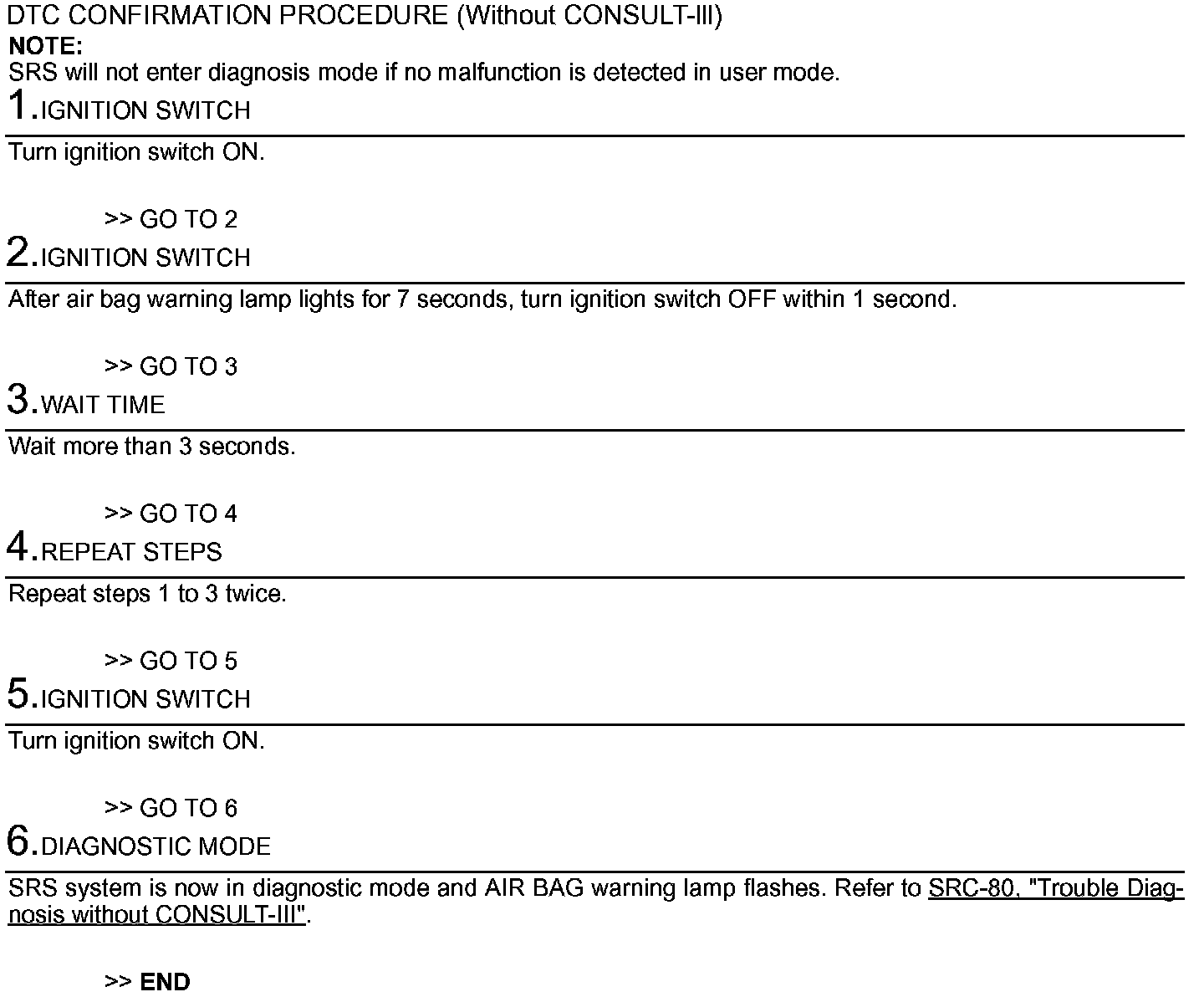

DTC CONFIRMATION PROCEDURE (Without CONSULT-III)
Step 1-4:
Step 4 (Continued)-5:

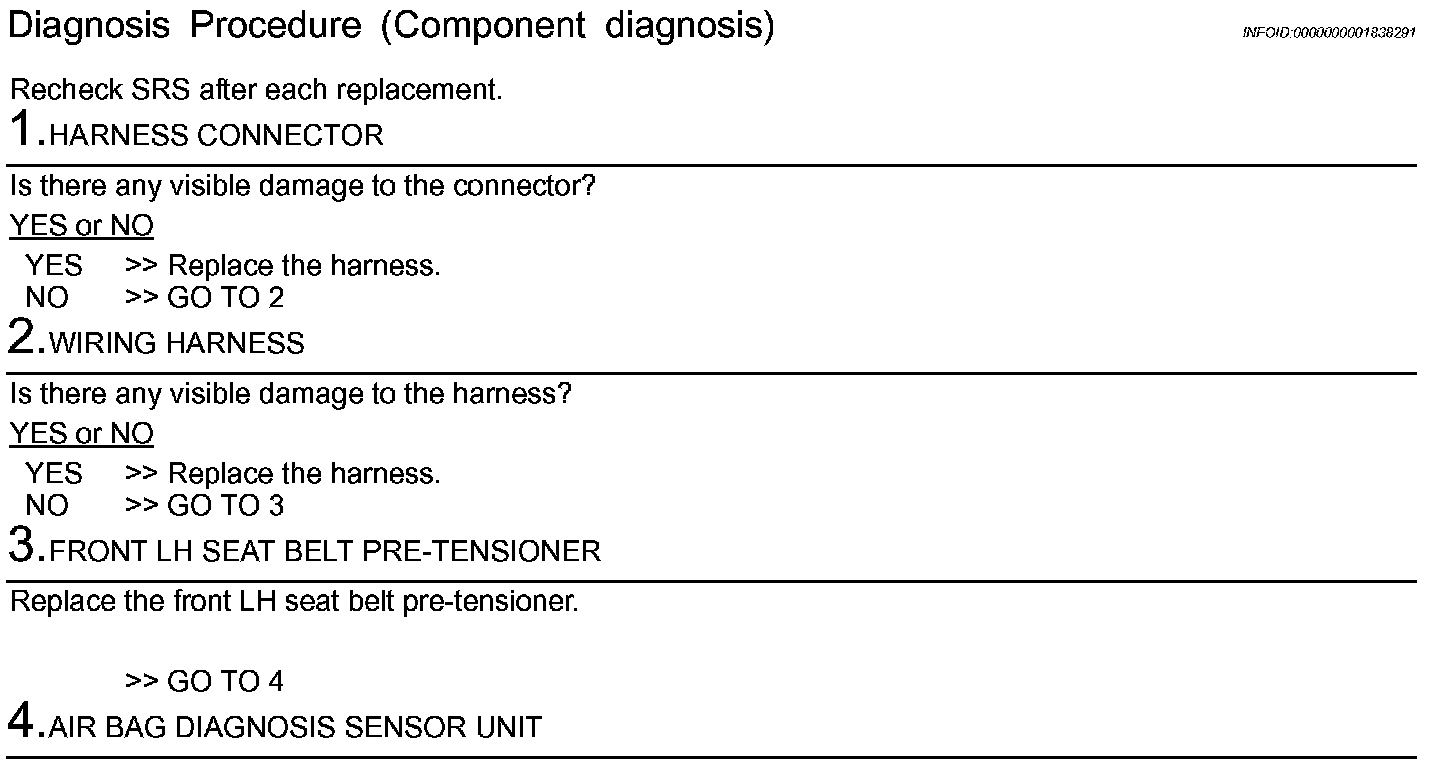

Diagnosis Procedure (Component diagnosis)
