B1119
B1118 - B1120 SATELLITE SENSOR LHDescription
DTC B1118 - B1120 SATELLITE SENSOR LH
The satellite sensor LH is wired to the air bag diagnosis sensor unit. The air bag diagnosis sensor unit will monitor the satellite sensor LH for internal failures and it's circuits for communication errors.
PART LOCATION
Refer to "SRS Component Parts Location".
DTC Logic
DTC DETECTION LOGIC

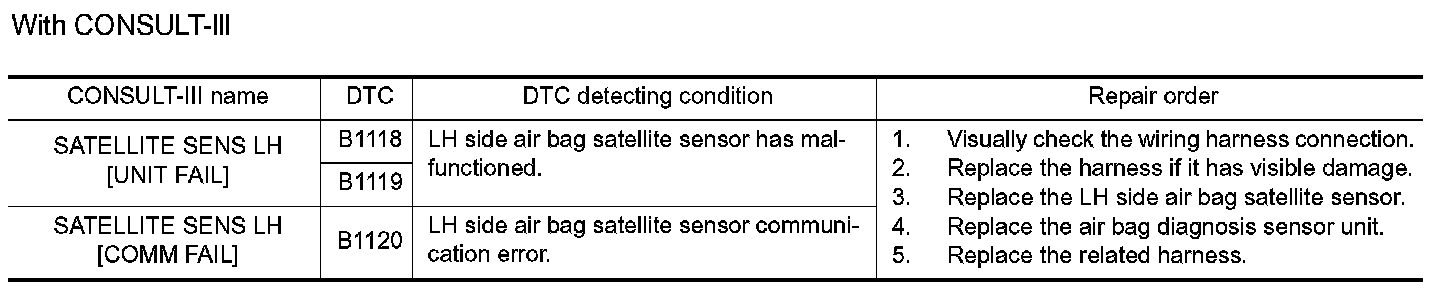

With CONSULT-III
Without CONSULT-III
Step 1-3:
DTC CONFIRMATION PROCEDURE (With CONSULT-III)
Step 1-6:
DTC CONFIRMATION PROCEDURE (Without CONSULT-III)
Step 1-4:
Step 4 (Continued)-5:

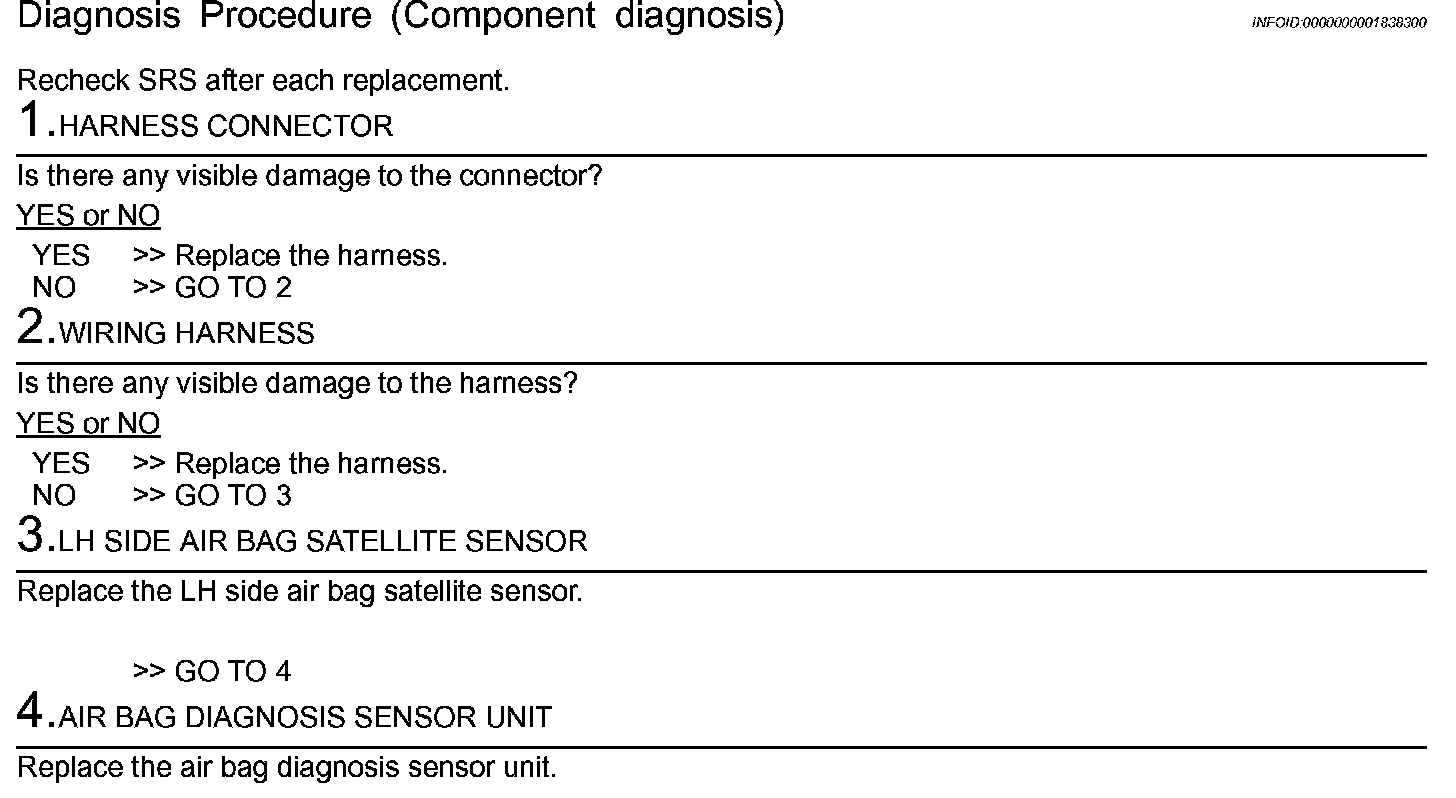

Diagnosis Procedure (Component diagnosis)
