B1134

B1134 - B1137 SIDE AIRBAG MODULE LH

Description

DTC B1134 - B1137 FRONT LH SIDE AIR BAG MODULE
The front LH side air bag module is wired to the air bag diagnosis sensor unit. The air bag diagnosis sensor unit will monitor for opens and shorts in detected lines to the front LH side air bag module.

PART LOCATION
Refer to "SRS Component Parts Location".

DTC Logic

DTC DETECTION LOGIC

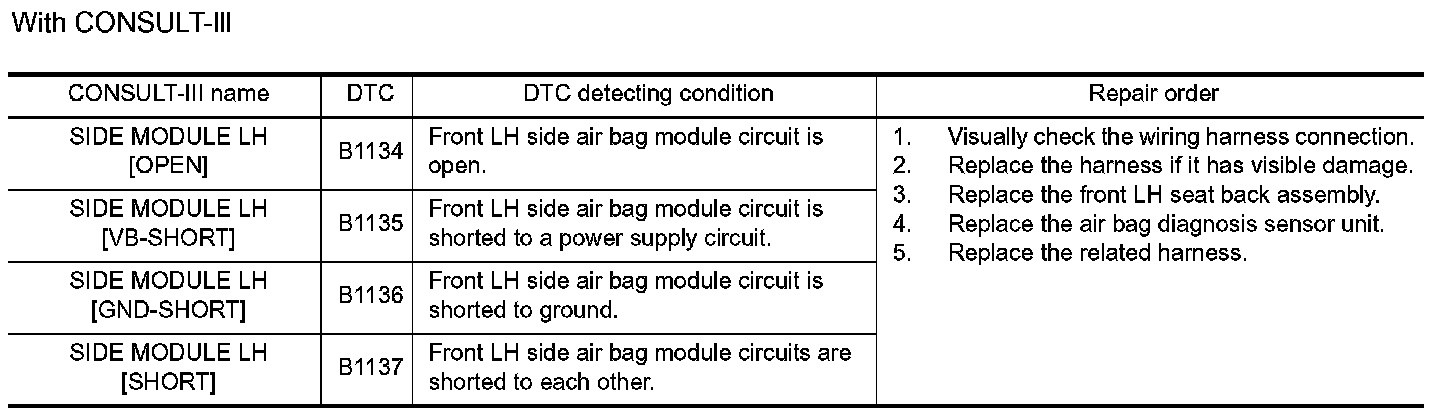

With CONSULT-III




Without CONSULT-III

Step 1-3:

DTC CONFIRMATION PROCEDURE (With CONSULT-III)

Step 1-6:

DTC CONFIRMATION PROCEDURE (Without CONSULT-III)

Step 1-4:

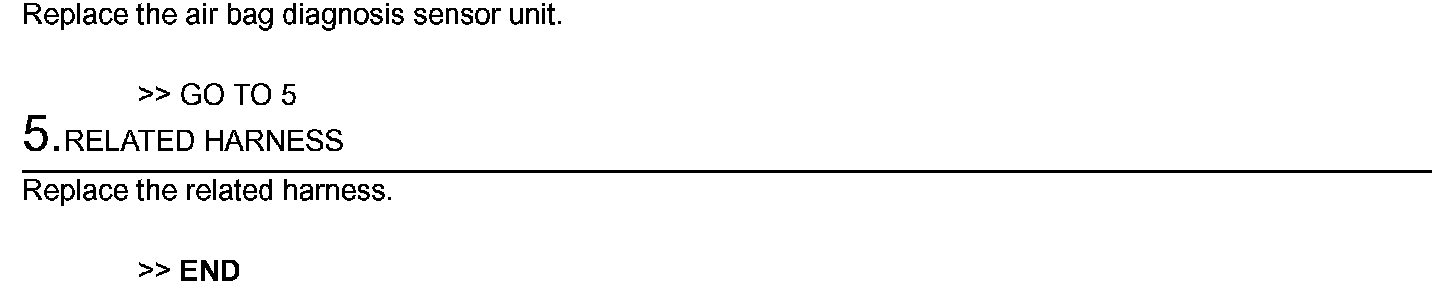

Step 4 (Continued)-5:

Diagnosis Procedure (Component diagnosis)
