B1210

B1209 - B1210 COLLISION DETECTION

Description

DTC B1209 - B1210 COLLISION DETECTION
The air bag diagnosis sensor unit will set this DTC if it has detected a collision which has resulted in a frontal or side deployment of one or more air bags or pre-tensioners. If this DTC is detected after a SRS repair, the air bag diagnosis sensor unit has not yet been replaced. This DTC can not be erased.

PART LOCATION
Refer to "SRS Component Parts Location".

DTC Logic

DTC DETECTION LOGIC

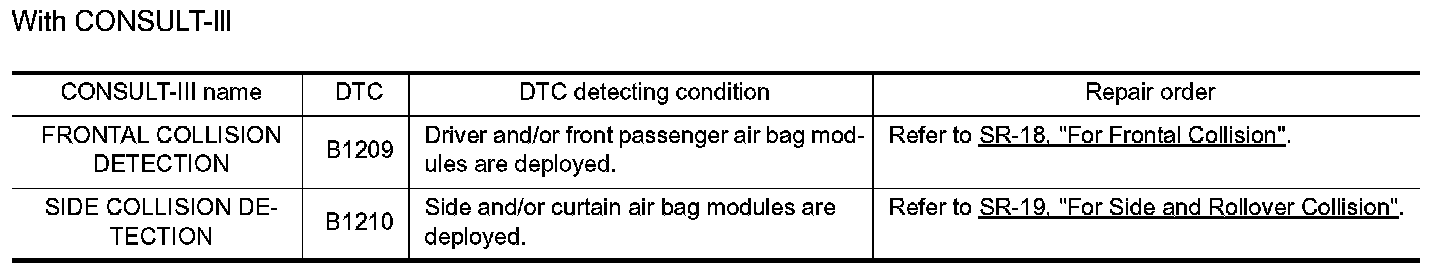

With CONSULT-III

Step 1-3:

DTC CONFIRMATION PROCEDURE (With CONSULT-III)

Diagnosis Procedure (Component diagnosis)
Refer to SR-18, "For Frontal Collision" or SR-19, "For Side and Rollover Collision". Collision Diagnosis
