P1564

P1564 ASCD STEERING SWITCH

Description
ASCD steering switch has variant values of electrical resistance for each button. ECM reads voltage variation of switch, and determines which button is operated.
Refer to "System Diagram" for the ASCD function.

DTC Logic




DTC Detection Logic

Step 1-2:

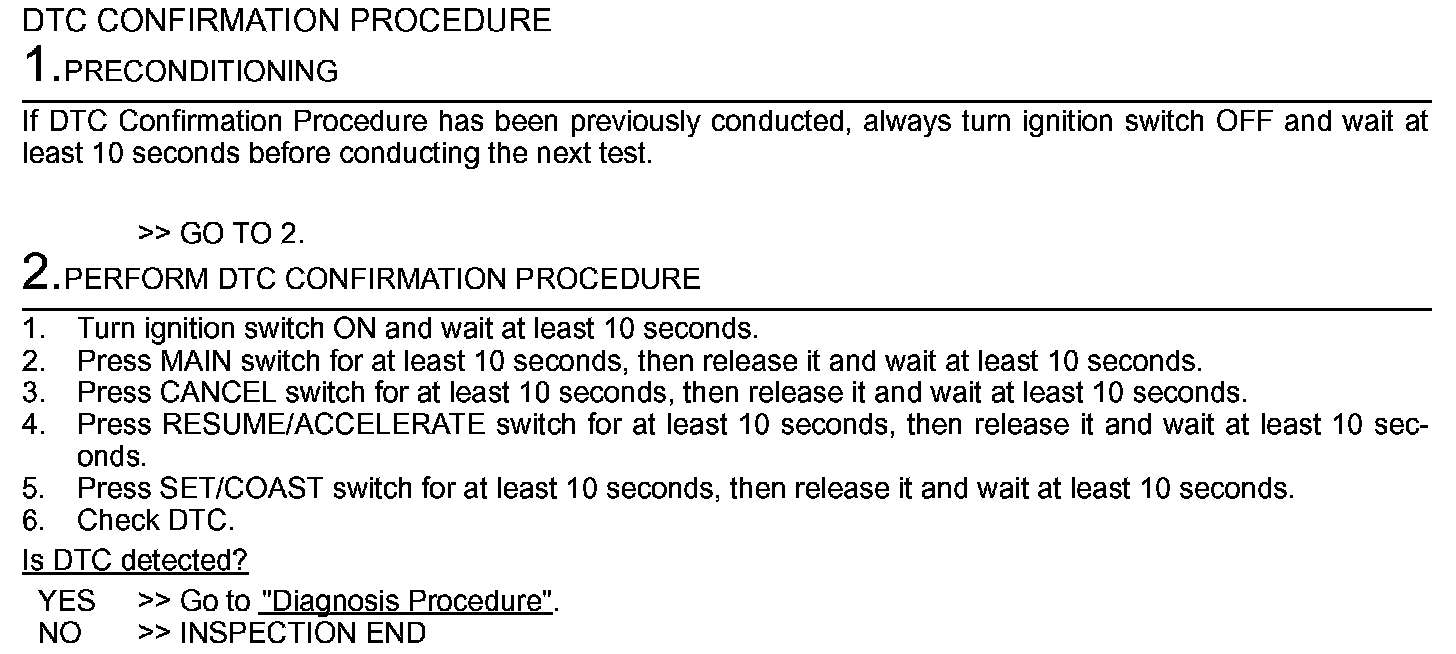

DTC Confirmation Procedure

Step 1-2:

Step 2 (Continued)-5:

Step 5 (Continued)-8:

Diagnostic Procedure

Step 1:

Component Inspection
