Coupe

Exploded View INT-21:

TRUNK ROOM TRIM & TRUNK LID FINISHER

BLUETOOTH CONTROL UNIT

Removal and Installation - Coupe

REMOVAL
1. Disconnect the battery negative terminal.
2. Remove the trunk floor carpet and spare tire cover. Refer to Exploded View INT-21.
3. Remove the LH trunk floor spacer.

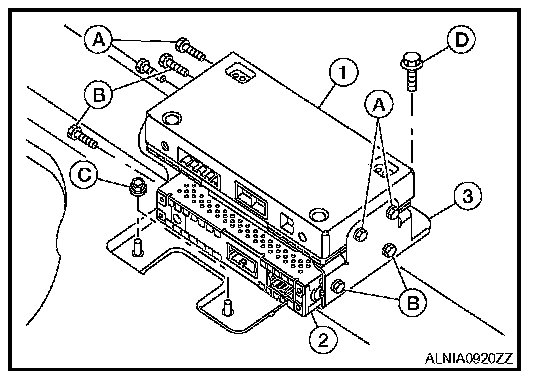

4. Remove the Bluetooth control unit screws (A), disconnect the Bluetooth control unit connectors and remove the Bluetooth control unit (1).
- Satellite radio tuner (2)
- Satellite radio tuner screws (B)
- Satellite radio tuner bracket (3)
- Satellite radio tuner bracket nuts (C)
- Satellite radio tuner bracket screw (D)

INSTALLATION
Installation is in the reverse order of removal.
