Sedan

BLUETOOTH CONTROL UNIT

Removal and Installation - Sedan

REMOVAL
1. Remove the rear parcel shelf.

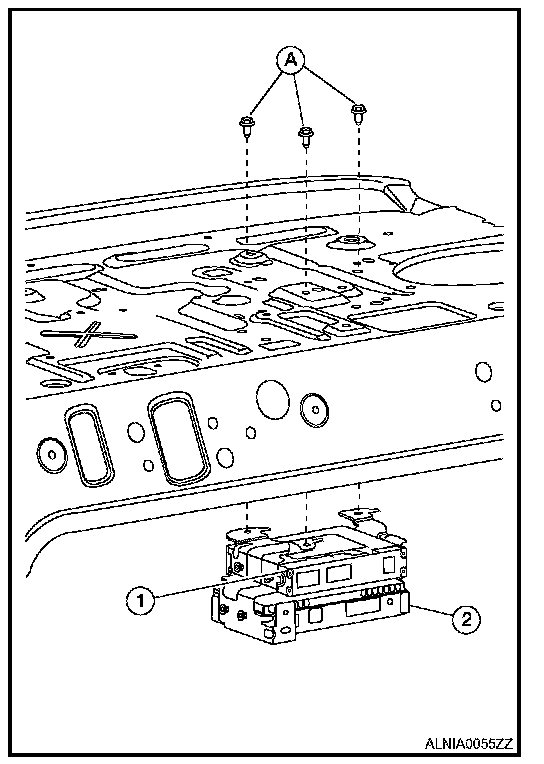

2. Remove the Bluetooth control unit screws (A), disconnect the Bluetooth control unit connectors and remove the Bluetooth control unit (2).
- Satellite radio tuner (1)

INSTALLATION
Installation is in the reverse order of removal.
