Garage Door Opener Transmitter
>>
Coupe
Coupe
HOMELINK UNIVERSAL TRANSCEIVER
Wiring Diagram

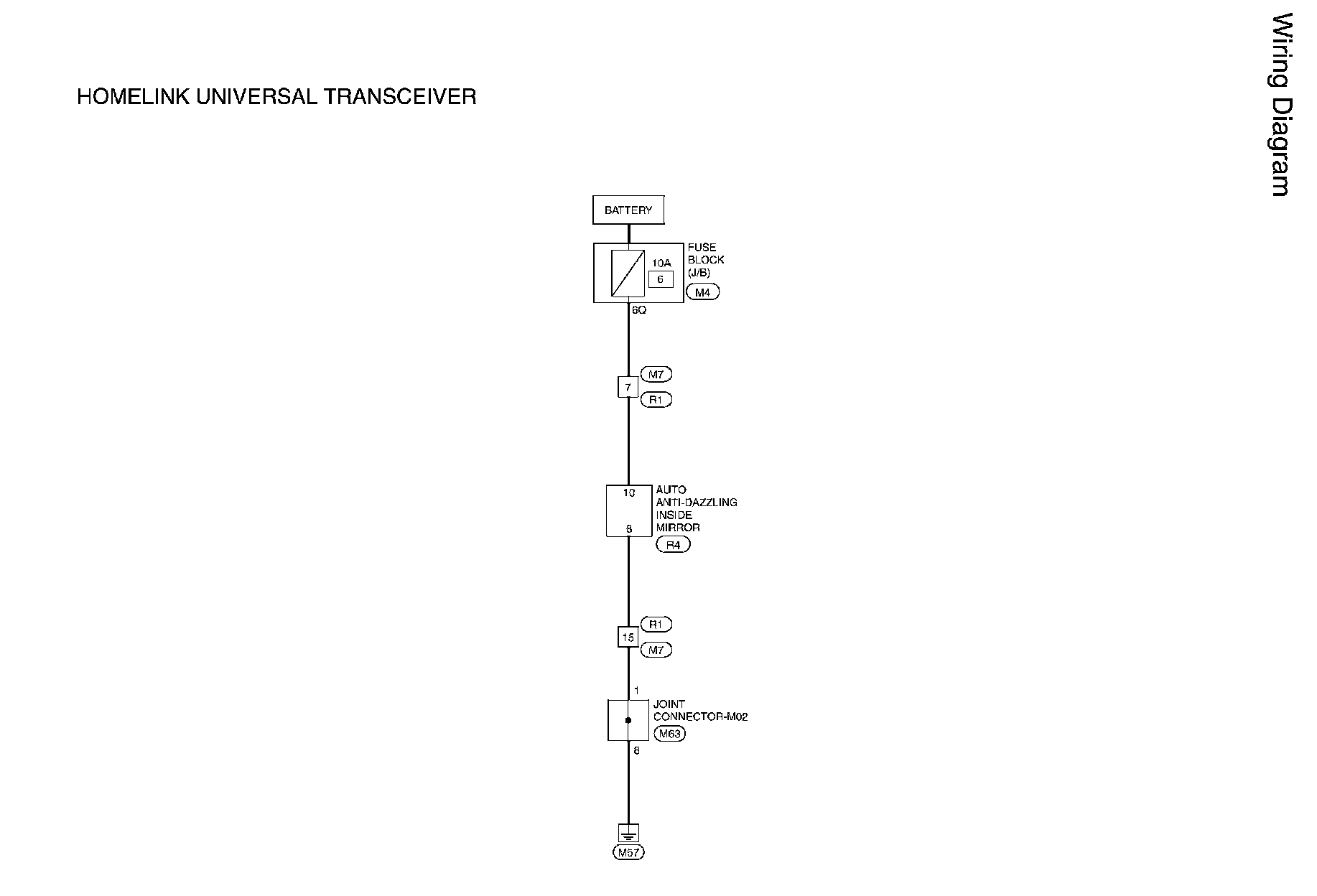

Wiring Diagram - Homelink Universal Transceiver - Part 1:

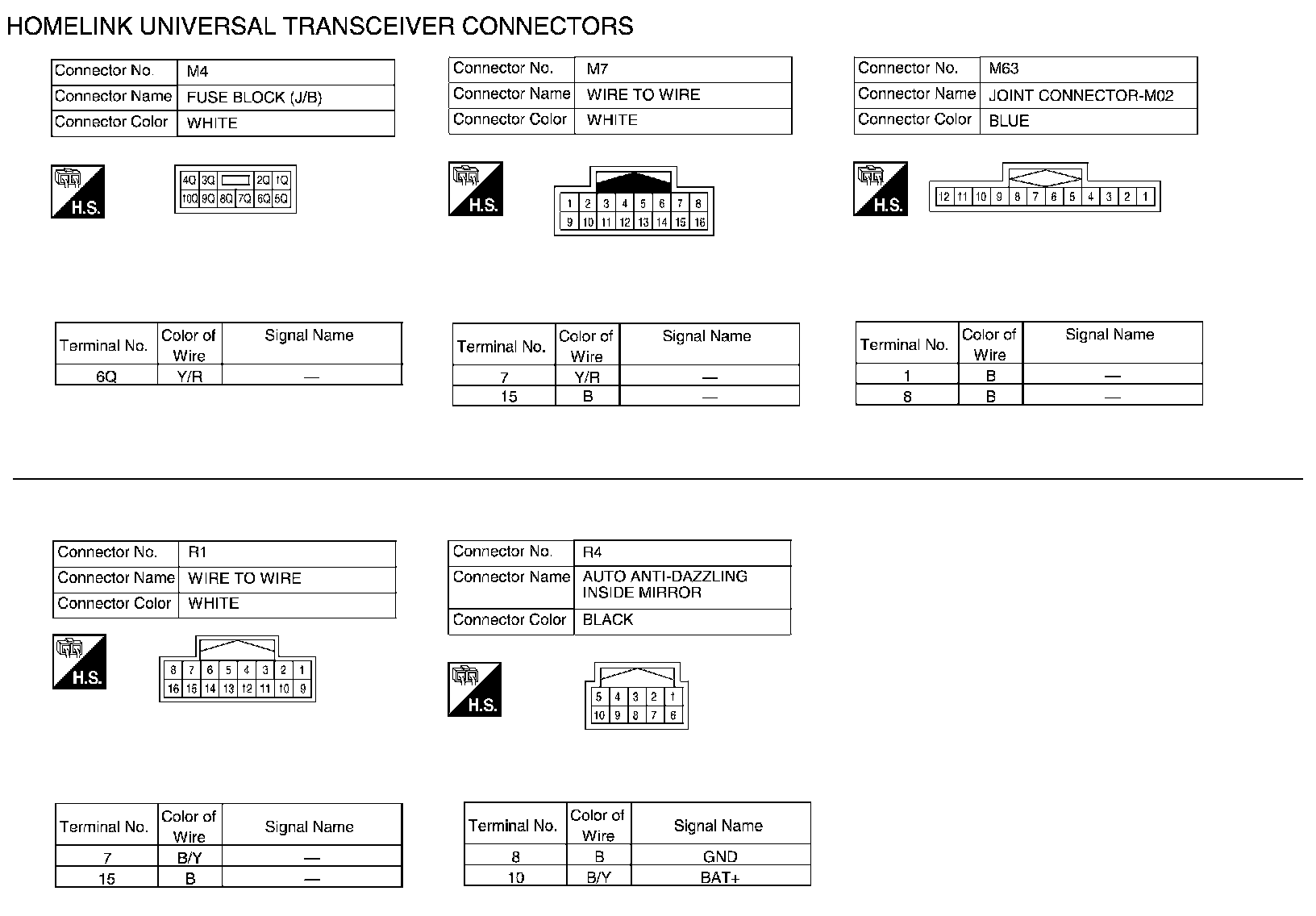

Wiring Diagram - Homelink Universal Transceiver - Part 2:
